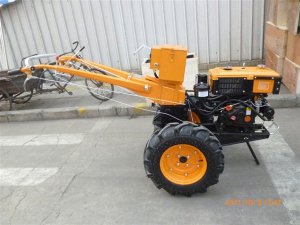

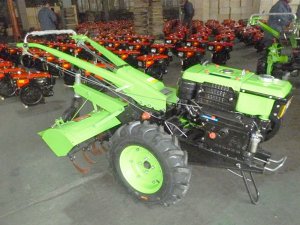

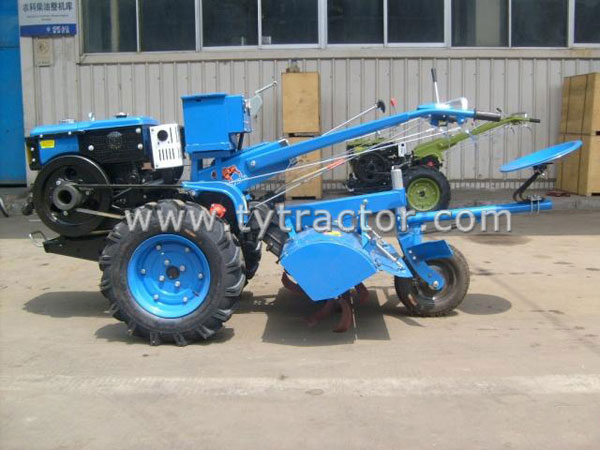

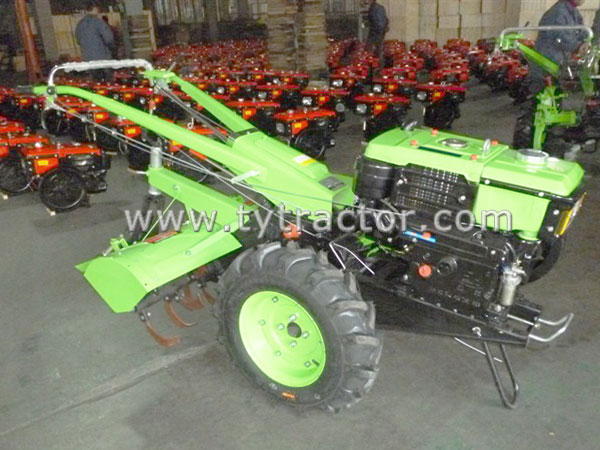

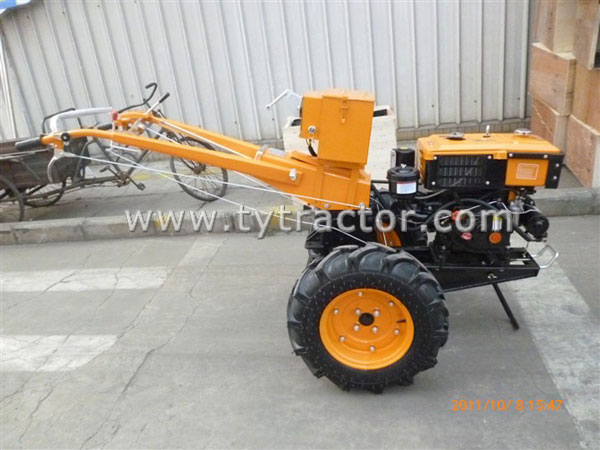

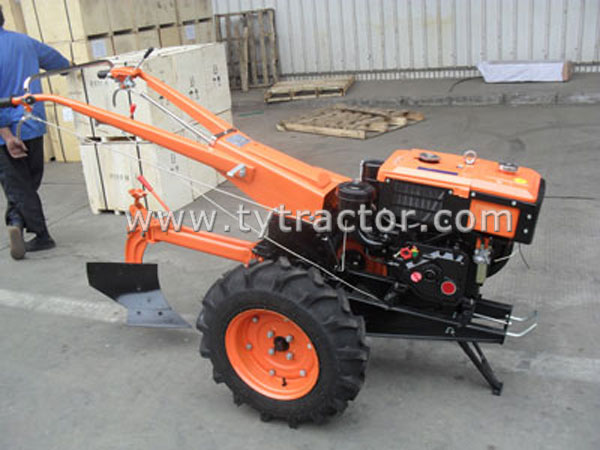

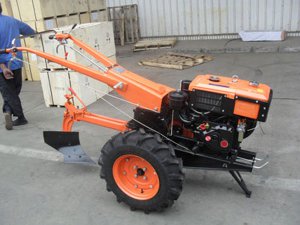

12HP Walking Tractor, Single-axle Tractor, Walk-behind Tractor
Go back to Catalog: Walking Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
12HP Walking Tractor Series
12HP Walking Tractor such as a trailer, cultivator or harrow, a plough, or various seeders and harvesters
12HP Walking Tractor such as a trailer, cultivator or harrow, a plough, or various seeders and harvesters
|
Engine |
Pattern |
Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled |
| Model | 1105 | |
| Displacement(L) | 1.194 | |
|
Oil Consumption (g/ km. h) |
< 320 | |
| Engine Oil Consumption (g/ km. h) | < 2.72 | |
| Rated Power(kw) | 13.23 | |
| Rated Speed(rpm) | 2000 | |
|
Machine Parameters |
Type | Pull and Drive |
| Overall Size(mm) | 2680*960*1250(without seat) | |
| Wheel Tread(mm) | 800 | |
| Minimum Ground Clearance(mm) | 185 | |
| Minimum Turning Radius(m) | 0.9 | |
| Structural Weight(kg) | 360 (with connecting frame), 480(with rotary tiller) | |
| Tyre | 6.00-12 | |
| Theoretical Speed (km/h) |
Forward: 1.4, 2.5, 4.1, 5.3, 9.4, 15.3 Reverse: 1.0, 3.8 |
|
| Rated Traction(N) | 2400 | |
| Gearbox | (3+1 ) × 2 | |
| Oil Type | 0# in summer, -10 or 20 in winter | |
| Cooling Type | Evaporation | |
| Rear-Wheel Diameter (mm) | 340 |
