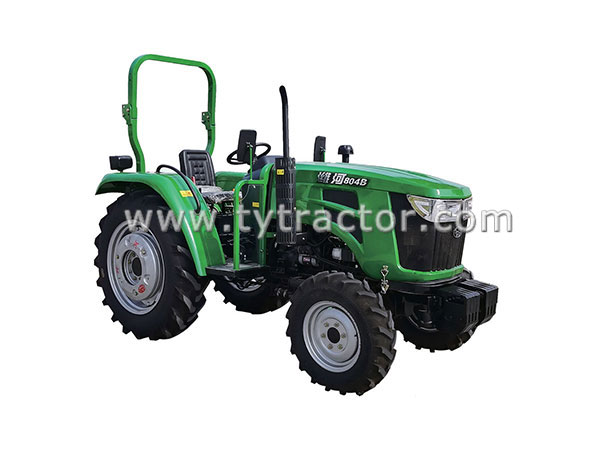

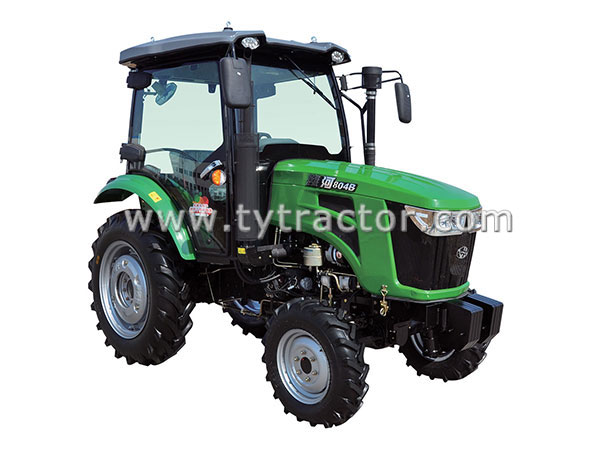

WH804 Tractor

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

WH804 Tractor Series

Model			WH504	WH604	WH704	WH804	HW904
Type			4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type	4×4 Wheeled Type
Dimensions of Tractor (mm)	Length		3700	3700	3900	3900	4000
	Width		1710	1710	1795	1795	1900
	Height		2160	2160	2300	2300	2610
	Tread	Front Wheel	1250	1250	1300	1300	1300
		Rear Wheel	1200,1300(usual),1400	1200,1300(usual),1400	1200,1300(usual),1400	1200,1300(usual),1400	1200,1300(usual),1400
	Wheel Base		1950	1950	2072	2072	2072
	Min. Ground Base		325(the bottom of steering horizontal pulling rod)		390(the bottom of steering horizontal pulling rod)
Min. Usage Mass (kg)			2500	2500	2700	2700	2750
Engine	Model		quanchai495	quanchai4105	quanchai4108	quanchai4108	quanchai4110
	Type		Vertical, water cooled and 4-stroke
	Rated Power(kw)		36.8	44.1	51.4	58.8	66.2
	Rated Rev.(r/min)		2300	2400	2400	2300	2300
	Fuel		Diesel Oil	Diesel Oil	Diesel Oil	Diesel Oil	Diesel Oil
Tire	Front Wheel		8.3-20	8.3-20	8.3-24	8.3-24	8.3-24
	Rear Wheel		12.4-28	12.4-28	14.9-30	14.9-30	14.9-30
Clutch			dry-friction, single disc and two stage
Steering			Hydraulic type
Transmission Box			two shafts, 4×(3+3) composed
Suspension Type			Post Positioned Tri-point Suspension Catalogue I
PTO	Type and Rev.(r/min)		Post-position, half-independent, 540/760 or 540/1000(optional)
	Spline Size		I38 Rectangle Spline with 8 teeth
