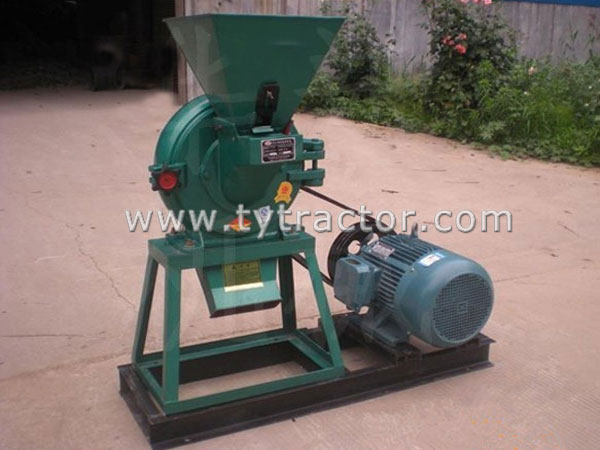

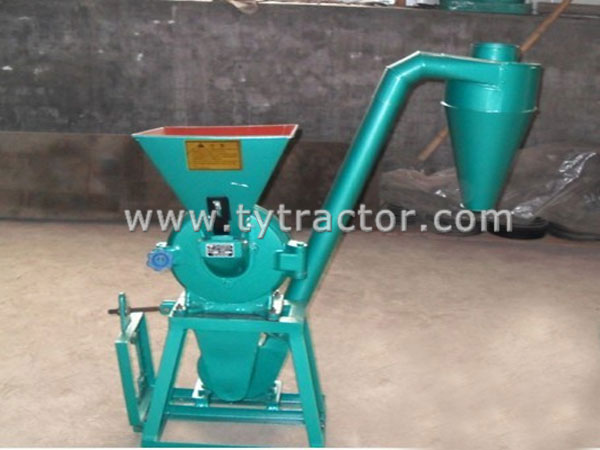

9FC Grinding Mill, Hammer Mill Maize Processing Corn Crusher Maize Meal Grinding Machine
Go back to Catalog: More Products
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
9FC Grinding Mill Series
Working Principle:
The major working part is the rotor, the fixed tooth as its assistant part. Putting the raw material manually, the material then entered the crushing chamber automatically. The raw material was crashed into the rotor while the machine is running, so as to finish the whole grind process. After that, the crashed powder will pass through the collection hopper under gravity and airflow.
|
ower Consumption (Kw.h/t)
|
≤20
|
||
|
Productivity (Kg/h)
|
≥180
|
||
|
Sieve Pore Diameters (mm)
|
Φ2.0
|
||
|
Bearing Temperature (℃)
|
≤20
|
||
|
Noise (dB(A))
|
≤93
|
||
|
Roller Diameters (mm)
|
230
|
||
|
Roller Speed (r/min)
|
4500-5000
|
||
|
Matched Power (Kw)
|
2.2-3.0
|
||
|
Net Weight (Kg)
|
39.1
|
||
|
Packing Dimension (L*W*H)(mm)
|
450*360*510
|
