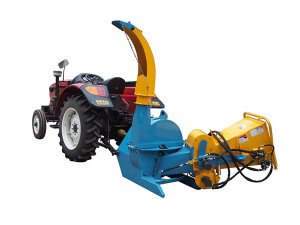

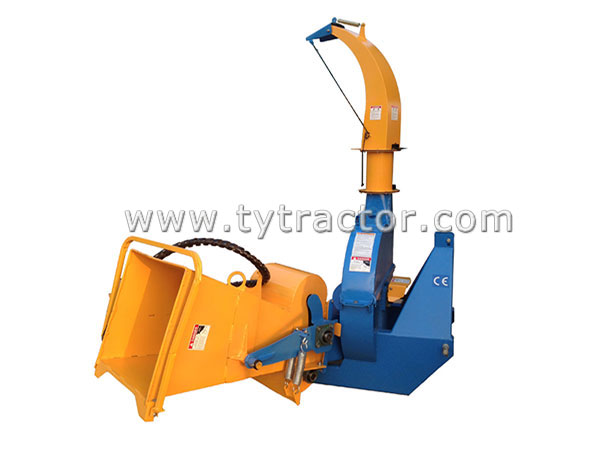

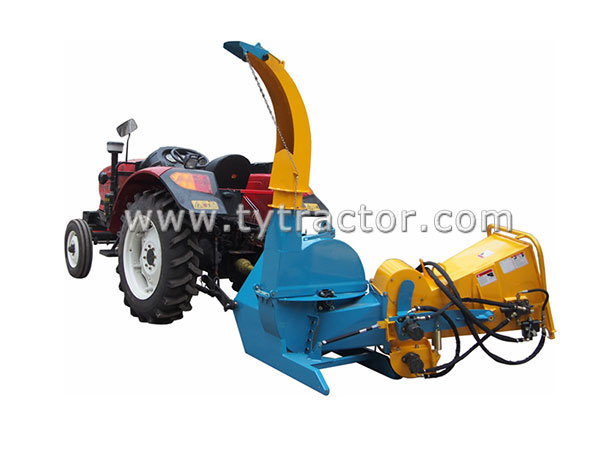

BX92R Wood Chipper, Wood Chipper Machine, Low Price Hight Quality
Go back to Catalog: Wood Chipper

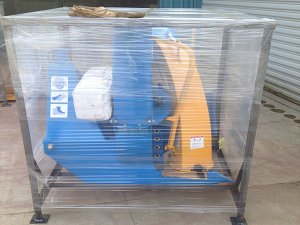

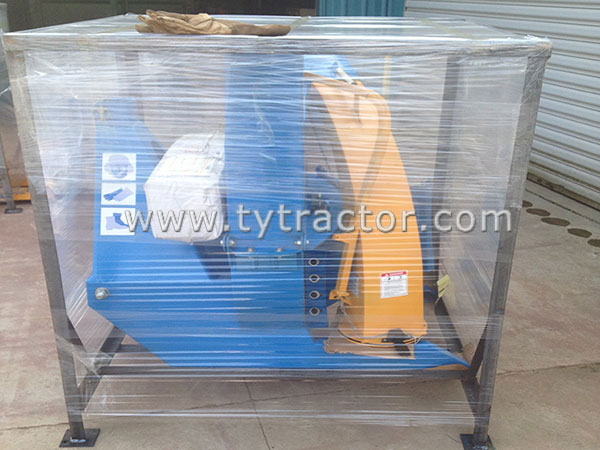

Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
BX92R Wood Chipper Series
1. Rotor
At the heart of the Kaideli BX and BX-R Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 10" diameter tree trunks.
2.Blades
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper.
3.Twig Breaker Blower Paddles
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
4.Adjustable Chute
Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance.
5.Hydraulic Feeding Hopper
Maximize your chipping with the aggressive hydraulic feed hopper. Chipping becomes effortless when you let the rotating teeth do all the work. As the brush is fed into the chipper, you can be ready with the next piece.
1. Rotor
At the heart of the Kaideli BX and BX-R Chipper is an oversize heavy duty rotor and reversible chipping blades. The large diameter rotor has a faster tip speed for improved chipping action and the heavy gauge steel keeps your momentum to power through 10" diameter tree trunks.
2.Blades
The reversible blades are precision cut tool steel and hardened, keeping a sharp cutting edge and maximizing the performance of the chipper.
3.Twig Breaker Blower Paddles
Behind the blades are blower paddles with integrated twig breakers designed for greater output force and smaller chips exiting the machine. This provides more consistent chip size and allows you to propel the chips further.
4.Adjustable Chute
Easily control where you want the chips with the double adjustable Exit Chute. The chute swivels 360 degrees and the top deflector adjusts the distance.
5.Hydraulic Feeding Hopper
Maximize your chipping with the aggressive hydraulic feed hopper. Chipping becomes effortless when you let the rotating teeth do all the work. As the brush is fed into the chipper, you can be ready with the next piece.
| MODEL | BX92R |
| Chipper Capacity | 250mm/10'' |
| Chipper Housing Opening | 10''x15'' |
| No.of Knives | 4 |
| Rotor Size | 36'' |
| Feeding System | Hydraulic Feed |
| Hopper Folded | 66''Lx68''Wx90''H |
| Hopper Opening | 25''x25'' |
| Mounting System | 3 Point Hitch |
| Discharge Hood Rotation | 360 |
| Discharge Hood Height | 90'' |
| Structure Weight | 625kg |
| Tractor HP | 70-120hp |
