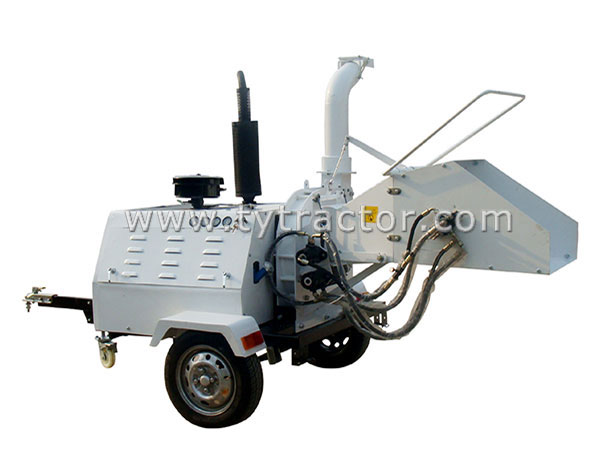

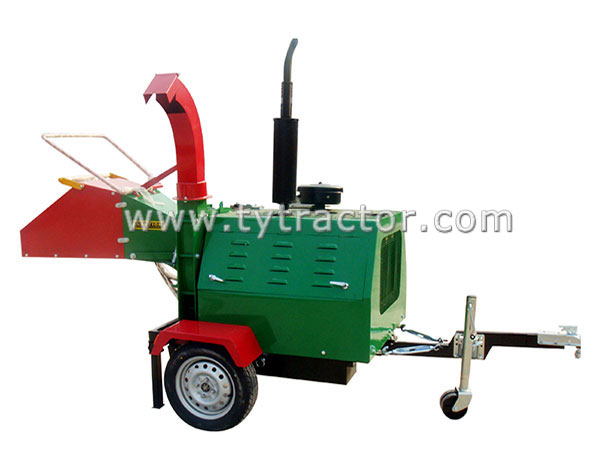

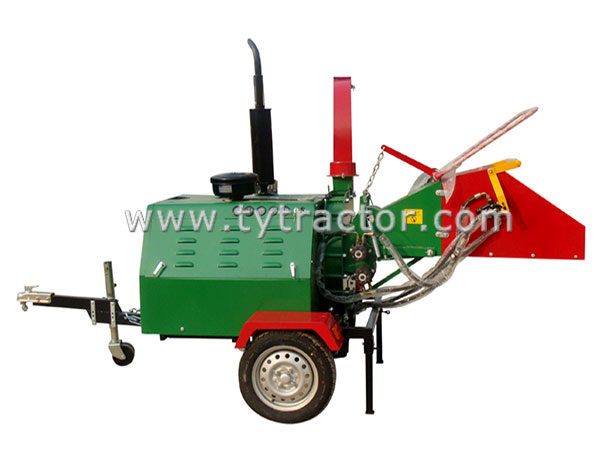

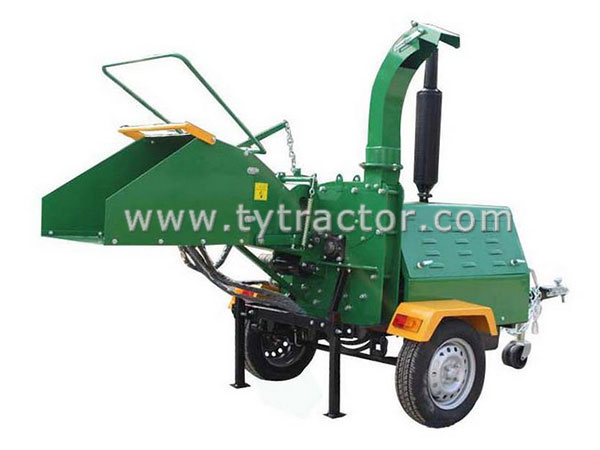

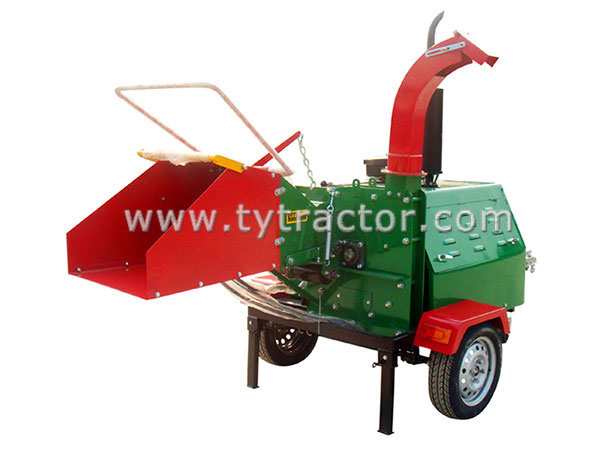

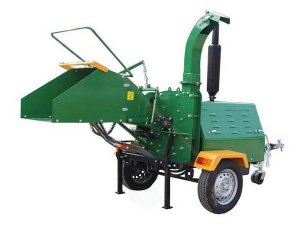

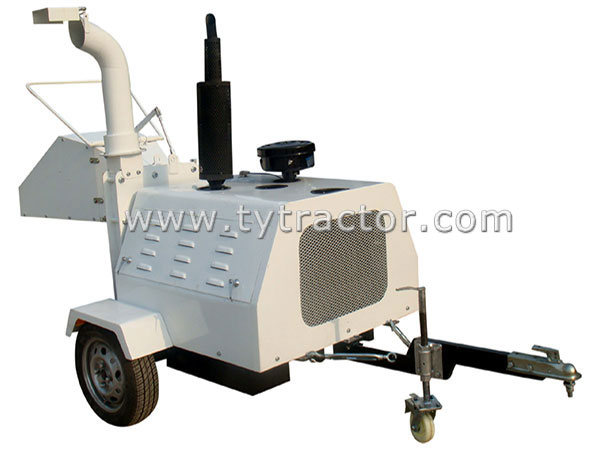

DH40 Wood Chipper, 40HP Diesel Engine Wood Chipper
Go back to Catalog: Wood Chipper
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
DH40 Wood Chipper Series
Options for Additional Configuration:
1. 30cm/ 50cm extra Chute Rotator
2. Extra longer infeed bin
3. Chute Rotator design on BX model
4. Engine Power 18HP, 22HP, 40HP, 50HP can be chosen
5. Engine brand as your request when quantity is big
Options for Additional Configuration:
1. 30cm/ 50cm extra Chute Rotator
2. Extra longer infeed bin
3. Chute Rotator design on BX model
4. Engine Power 18HP, 22HP, 40HP, 50HP can be chosen
5. Engine brand as your request when quantity is big
| Model | DM-18/DH-18/DM-22/DH-22 | DM-40/DH-40/DM-50/DH-50 |
| Power | 18HP/22HP | 40HP/50HP |
| Engine | one cylinder, Electric started diesel engine | 4cylinders, Electric started diesel engine |
| Chipper capacity | 8”diameter/200mm | |
| Feeding system | Mechanical / hydraulic | Mechanical / hydraulic |
| Rotor plate size | 640mm | 680mm |
| Rotor plate weight | 82kg | 85kg |
| Knives number | 1 stationary blade, 2 movable knives | |
| Blade Material | Durable Chromium CR-12 | |
| Dimensions(Hopper discharge) | 1700x1100x1100mm | 1780x1100x1350mm |
| Feed Hopper inner Opening | 200x220mm | 200mmx220mm |
| Discharge Hood Height | 1800mm | 2000mm |
| Rated RPM | 1080 | 1280 |
| Discharge hood rotates | 360 degree | |
| Settings | turning lights, easy discharge hood,2”Ball Hitch, Safety Chains and leaf spring on axle | |
| Gross Weight | 710kg/ 740kg/ 720kg/ 750kg | 800kg/ 830kgkg/820kg/ 850kg |
| Working efficiency | 6-11CBM/H | 7-12CBM/H |
