Tractor Slasher, Tractor Mower, Tractor Slasher
Go back to Catalog: Mower
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

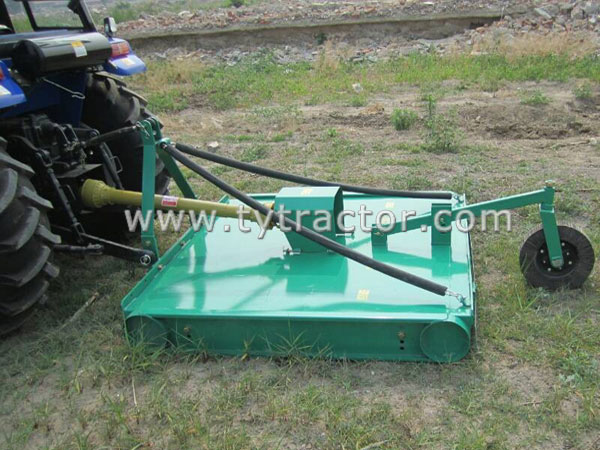

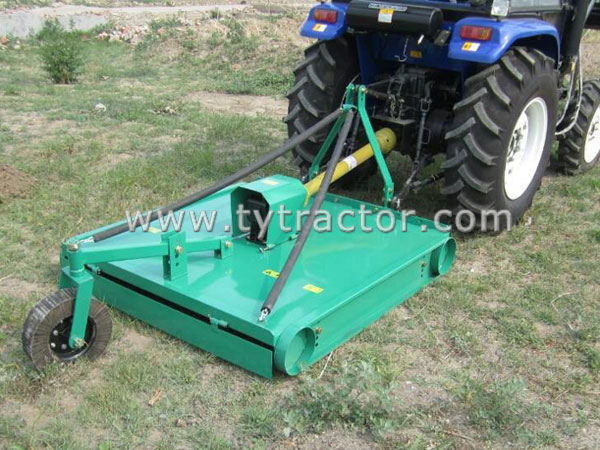

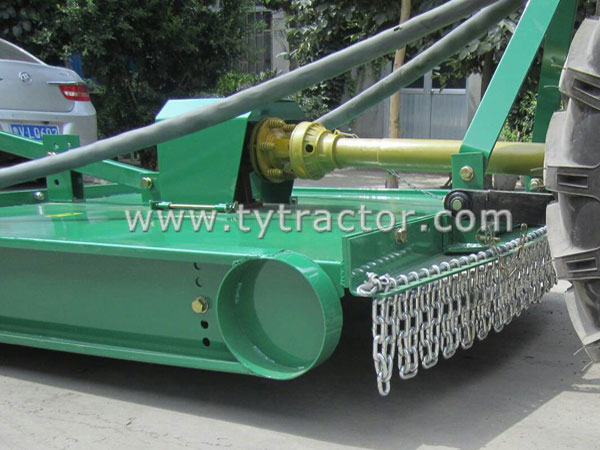

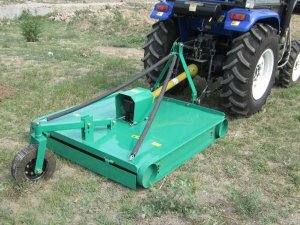

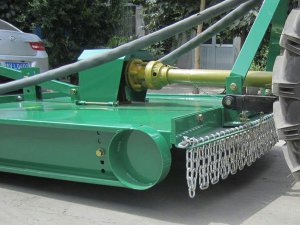

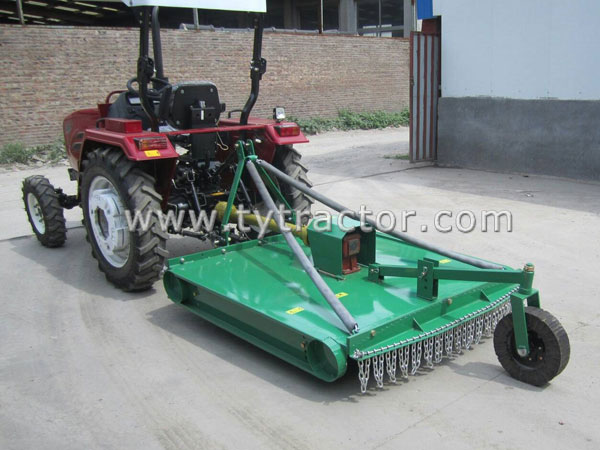

Tractor Slasher Series
Advantages,
1.9GBL series mower and rake machine can gather up the herbage of mature grazing grounds
at the same time of mowing.
2. Rake is mechanically lifted up and down by four-bar linkage; the operator can independently
complete the whole operation one-time.
3. Through changing suspension connecting point, we can solve the problem of damaging and
loosening frame and other defects.
Parameter,
Advantages,
1.9GBL series mower and rake machine can gather up the herbage of mature grazing grounds
at the same time of mowing.
2. Rake is mechanically lifted up and down by four-bar linkage; the operator can independently
complete the whole operation one-time.
3. Through changing suspension connecting point, we can solve the problem of damaging and
loosening frame and other defects.
Parameter,
| Model | unit | 9GB-1.4 | 9GB-1.6 | 9GB-1.8 | 9GB-2.1 |
| Working width | mm | 1400 | 1600 | 1800 | 2100 |
| Working depth | mm | 50-80 | |||
| PTO Rotation speed | r/min | 540 | |||
| PTO shaft spline | 6 spline | ||||
| Total weight | kg | 180 | 186 | 192 | 200 |
| Matched power | hp | 12-20 | 15-20 | 20-30 | 20-30 |
| The items selectable | Tipping single action oil cylinder,oil connection in 1/2”thread or oil connection (M20*1.5;M18*1.5;M22*1.5), PTO transmission shaft in 8 spline | ||||
