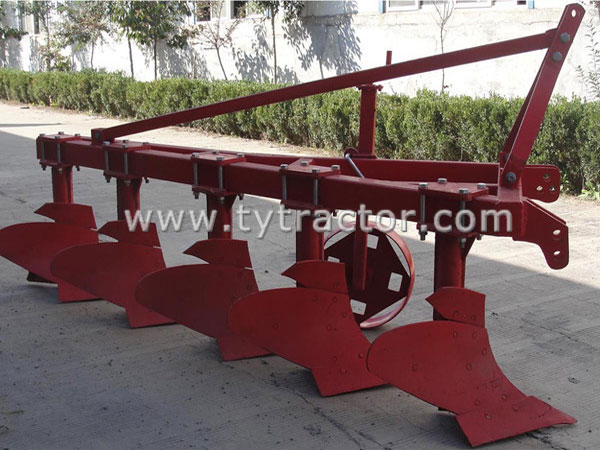

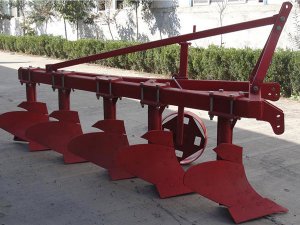

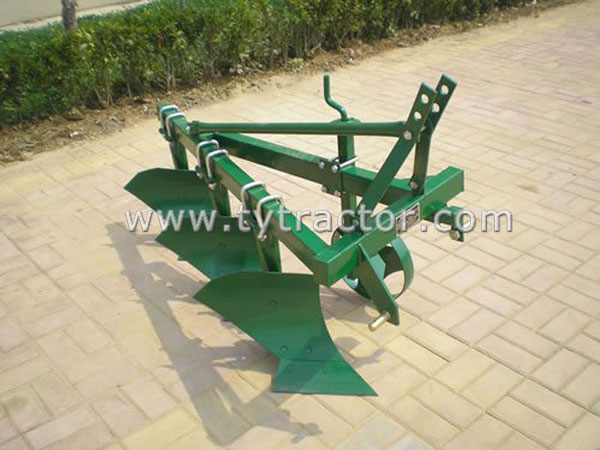

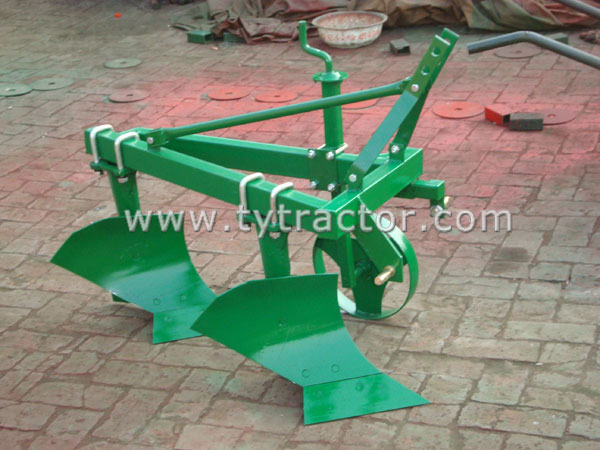

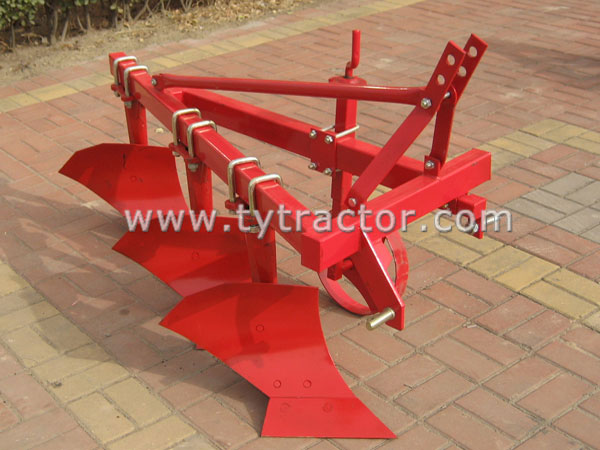

1L Share Plough, Tractor Plow, (20/25/30/35) Share Plough

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

1L Share Plough Series

Model	Unit	1L-220	1L-320	1L-420	1L-520
Working width	m	0.4	0.6	0.8	1
Working depth	mm	140-180	140-180	140-180	140-200
No.of bottoms		2	3	4	5
Overall weight	kg	60	80	100	110
Matched power	hp	12-20	15-25	20-25	40-50
Linkage		Standard three point mounted

Model	Unit	1L-225	1L-325	1L-425	1L-525
Working width	m	0.5	0.75	1	1.25
Working depth	mm	150-200	150-240	150-240	150-240
No.of bottoms		2	3	4	5
Overall weight	kg	75	160	230	290
230M290atched power	hp	15-25	35-40	40-50	50-70
Linkage		Standard three point mounted

Model	Unit	1L-230	1L-330	1L-430	1L-530
Working width	m	0.6	0.9	1.2	1.5
Working depth	mm	180-260	180-260	180-260	180-260
No.of bottoms		2	3	4	5
Overall weight	kg	170	240	300	400
Matched power	hp	40-50	40-50	50-70	75-100
Linkage		Standard three point mounted

Model	Unit	1L-335	1L-435	1L-535	1L-635
Working width	m	1.05	1.4	1.75	2.1
Working depth	mm	200-300	200-300	200-300	200-300
No.of bottoms		3	4	5	6
Overall weight	kg	320	500	580	780
Matched power	hp	65-75	90-110	110-130	130-160
Linkage		Standard three point mounted
