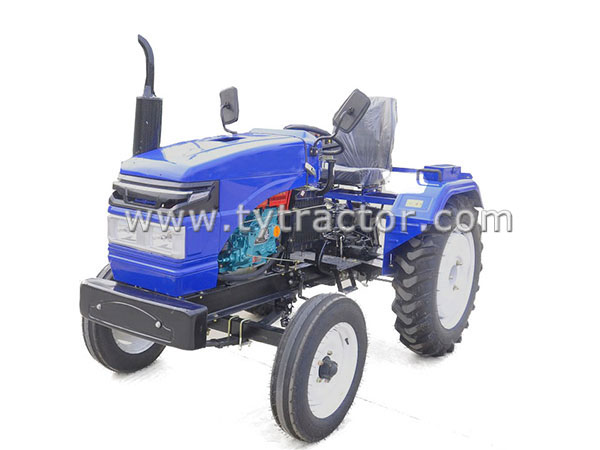

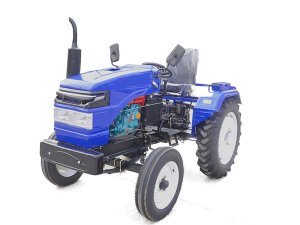

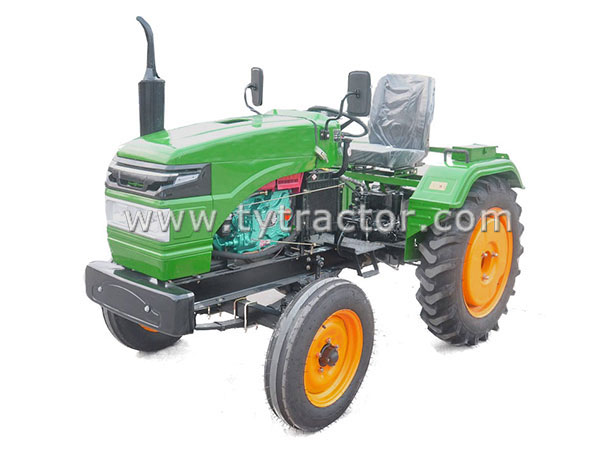

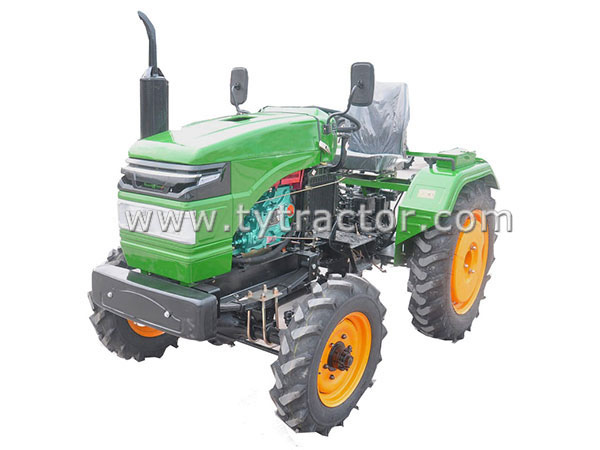

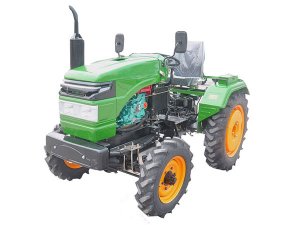

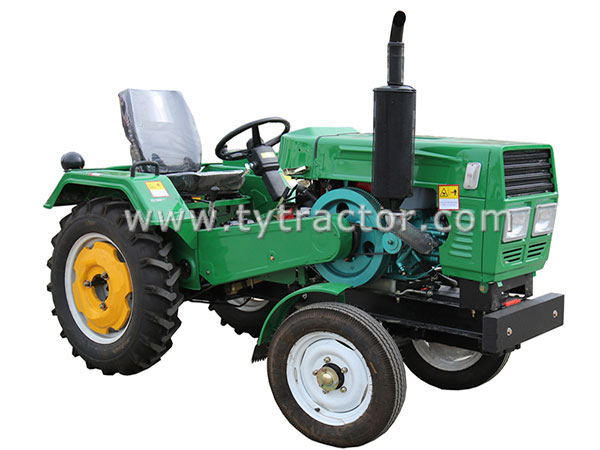

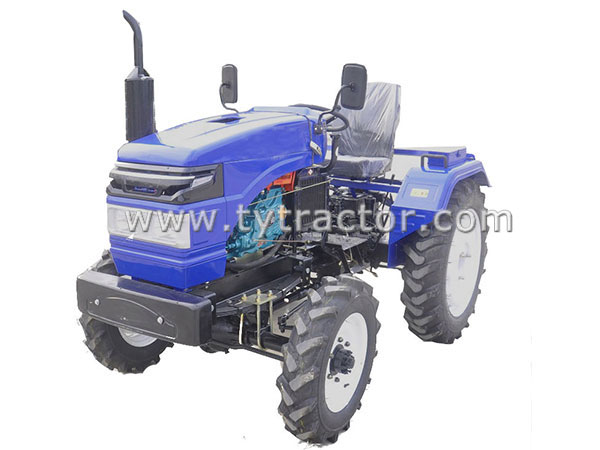

240/244 Belt Tractor, 24HP Tractor with 2WD,4WD

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

240/244 Belt Tractor Series

Model		BT-240/250
Type		2*4, for general agricultural purpose
Rated traction force (n)		3800
Tread (mm)	front	960/1150
	rear	1200
Overall dimension (mm)	L	2808/2908
	W	1225/1425
	H	1385
Wheelbase (mm)		1400/1500
Ground clearance (mm)		245/295
Weight (kg)		825/880
Min. turining radius (m)		3/3.3
Diesel engine	type	Diesel engine, single-cylinder, water-cooled, 4 strokes
	Rated speed(r/min)	2200
	Power (hp)	24/25
	Fuel consumption	252 g/kw/h

transmission	clutch	Dry, double plates, constant mesh, friction
	gearbox	cylindric straight-tooth gear, combined type
	Central transmission	Two-stage cylindrical gear
	differential	Straight bevel planetary gear
	brake	Shoe brak
	How cluth work with engine	With belt
Steering device		worm type steering gear/hourglass worm steering
Walking system	How to drive	Driven by rear wheel
	Front axle	Integral type, unadjustable/ split type, adjustable
	Front type	4.50-16
	Rear type	8.3-24
	Front type pressure	245
	Rear type pressure	147-245
Hydraulic device	Type	Internal circulation
	Oil pump	Gear pump, CBN-E306
	Hydro-sylinder	piston, single-stage
	Distributor	Steering valve/ side valve
	Flate rate of pump	5 L/min
	Opening pressure of safety value	13.5o+0.5 Mpa
	Rated lifting time	≤3s
Hitch device	type	Rear-mounted,three-point hitch, spherical hinge
	Low point	420mm
	Max. lifting	≥2810/3970
PTO		Side-mounted,dependent,rotating speed(r/min):1350
Fuel rank (L)		9
Water rank(L)		11.5
