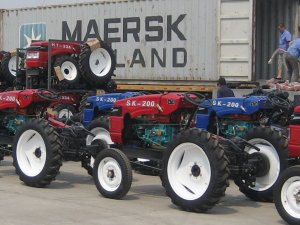

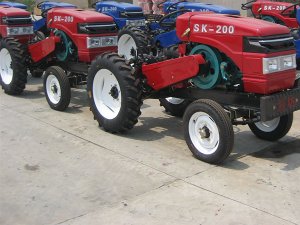

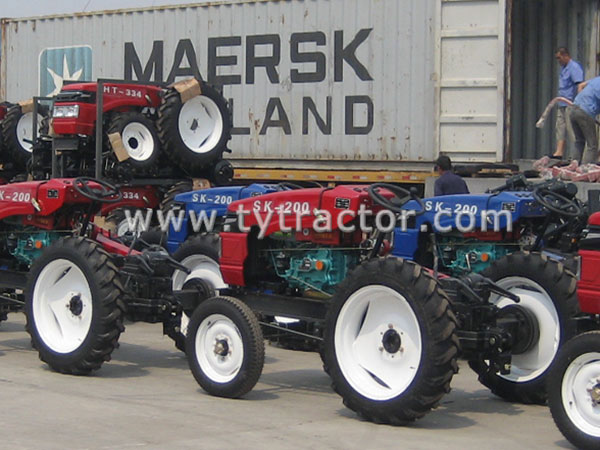

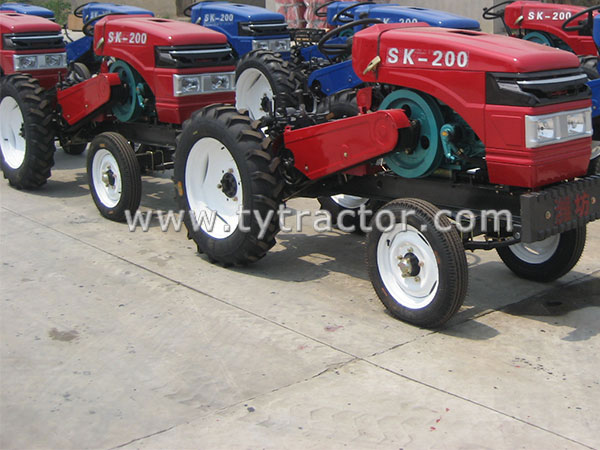

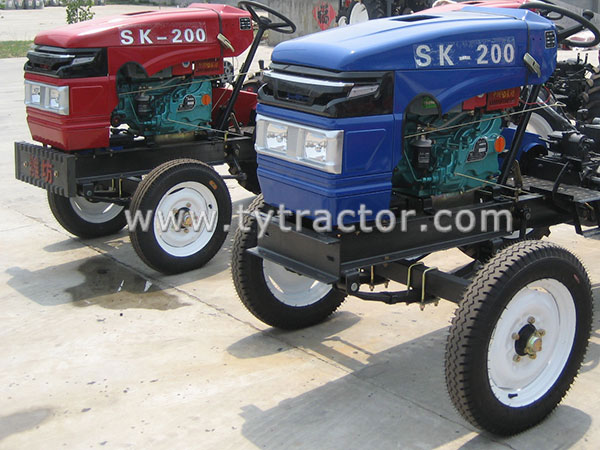

SK200 Tractor, 20HP Belt Driven Tractor
Go back to Catalog: HT Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
SK200 Tractor Series
| Model | SK180 | SK200 | SK240 | |
| one year guarantee | * | * | * | |
| Engine | Model | 1110 | 1115 | KM138/1120 |
| Power (kw) | 13.23 | 14.7 | 17.64 | |
| Type | single cylinders engine diesel, water cooling | |||
| condensation radiator type | o | o | o | |
| Tractor parameter | Type | 4x2 wheeled drive | ||
| Traction (kn) | 3.72/4.41 | 3.82/4.65 | 4.58/4.85 | |
| Length | 2630mm | |||
| Width | 1170mm | |||
| Height | 1290mm | |||
| Wheel base | 1400mm | |||
| Wheel track | 900/960mm | |||
| Min. ground clearance | 295mm | |||
| Min. steering radius | 2.8 | |||
| Dry weight (kg) | 845 | 845 | 880 | |
| Front ballast | o | o | o | |
| Rear ballast | * | * | * | |
| Forward speed | 2.10~32.20 km/h | |||
| Reverse speed | 1.70~7.80 km/h | |||
| Transmission | Single clutch | * | * | * |
| Double clutch | - | - | - | |
| (3+1)*2 shift gearbox | - | - | - | |
| (4+1)*2 shift gearbox | o | o | o | |
| Differential lock | * | * | * | |
| running system | Frame type | Rigidity frameless | ||
| Tyre | 7.50-20 | |||
| Power steering | - | - | - | |
| Air brake | o | o | o | |
| Brake | Toe type | |||
| Park brake | Latch pedal | |||
| Working system | Hydraulic hitch | * | * | * |
| Floating positional control hydraulic hitch | - | - | - | |
| Max. lift force | 3430 | 3626 | 3975 | |
| Hitch system | Rear mounted, 3 point hitch linkage | |||
| Swing drawbar | - | - | - | |
| Side PTO shaft type | Rear non-independent, diameter 35mm, rectangle spline type I, 6 teeth | |||
| Rear PTO | o | o | o | |
| Hydraulic output | * | * | * | |
| hydraulic ouput valve | - | - | - | |
| ROPS | o | o | o | |
| Top grade seat | o | o | o | |
| Ammeter | * | * | * | |
| Oil press gauge | * | * | * | |
| Water tem. gauge | * | * | * | |
| Timer | - | - | - | |
| Air press gauge | o | o | o | |
| Combine gauge | - | - | - | |
| Fan cabin | o | o | o | |
| Warm air cabin | - | - | - | |
| A/C cabin | - | - | - | |
| * with this configure o optional configure - without this configure | ||||
