3S Subsoiler, Tractor Subsoiler, Farming Subsoiler
Go back to Catalog: Tillage Equipment
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

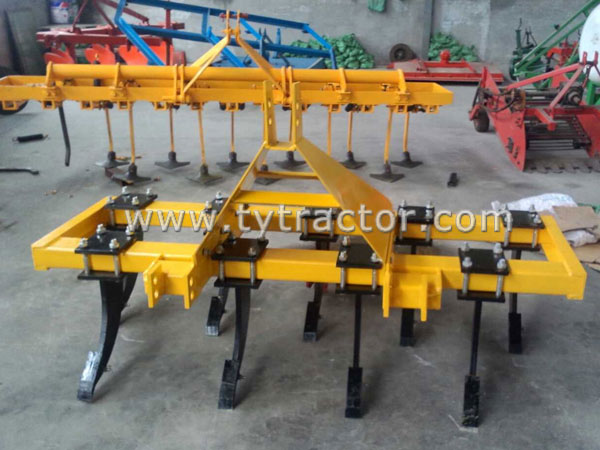

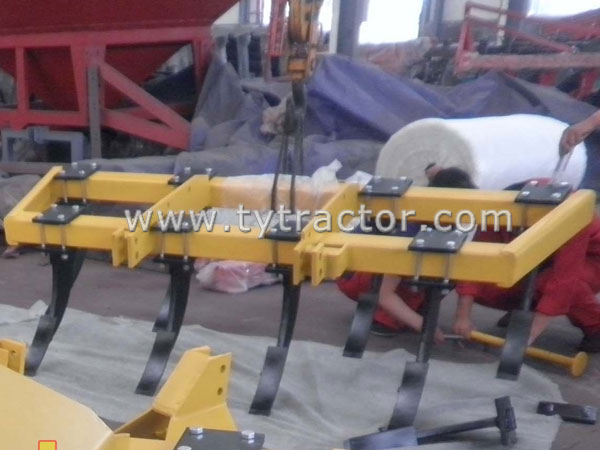

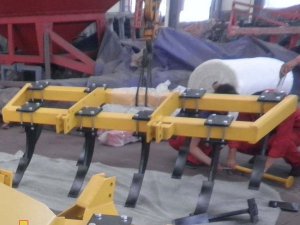

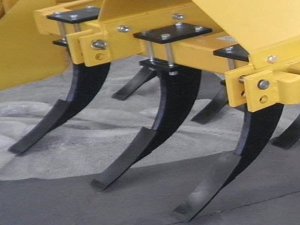

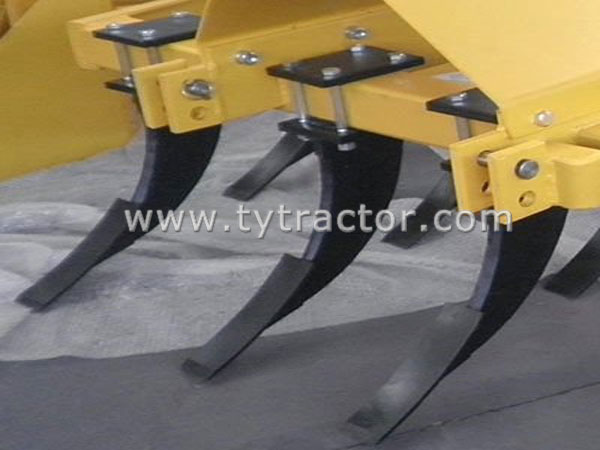

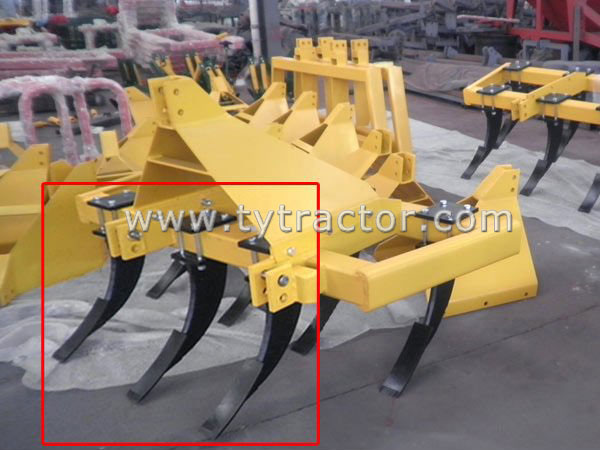

3S Subsoiler Series
Technique parameter:
The subsoilers are deep tillage implements specially designed for breaking up hard pan payers and loosening the subsoil allowing better drainage, root growth and mineral osmosis. The subsoilers ashatters the soil well below the surface, thus increasing the water holding capacity. The subsoilers preserves moisture during high rainfall which is very important for the crop to withstand low rainfall or drought.
• The Subsoilers can plough up to 25 c.m. deep .
• The Subsoilers fights draught by increasing the ground storage capacity.
• The Subsoilers increases soil turnover by reaching deeper organic matter layers. The ploughing width is adjustable.
• The Subsoilers fights draught by increasing the ground storage capacity.
• The Subsoilers increases soil turnover by reaching deeper organic matter layers. The ploughing width is adjustable.
| Model | Unit | 3S-1.0 | 3S-1.4 | 3S-1.8 | 3S-2.1 | 3S-2.6 | |
| working width | mm | 1000 | 1400 | 1800 | 2100 | 2600 | |
| no. of legs | 5 | 7 | 9 | 11 | 13 | ||
| working depth | mm | 100-240 | |||||
| total weight | kg | 240 | 280 | 320 | 370 | 450 | |
| matched power | hp | 25 | 40 | 50~60 | 70~80 | 80~100 | |
