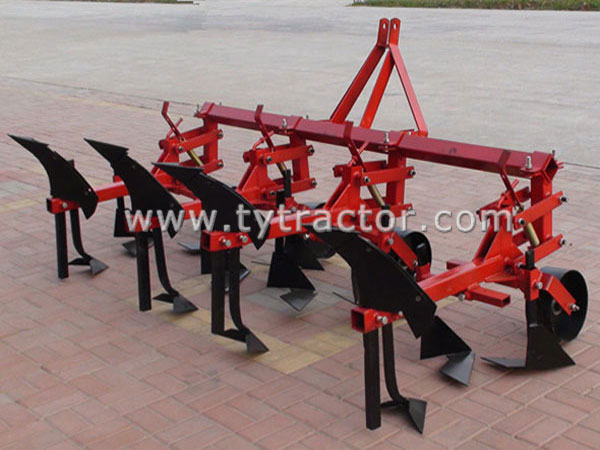

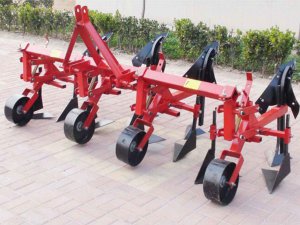

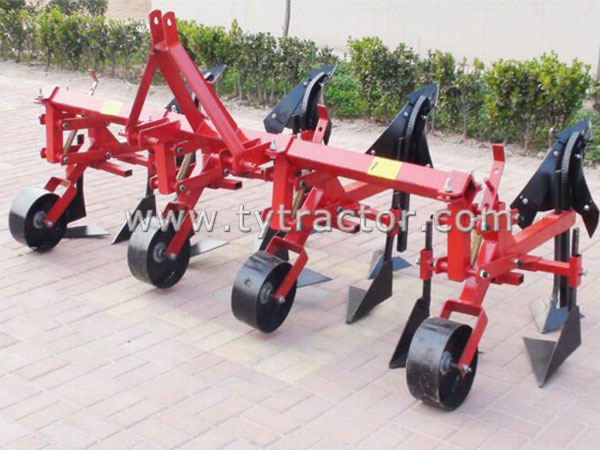

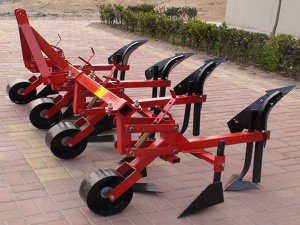

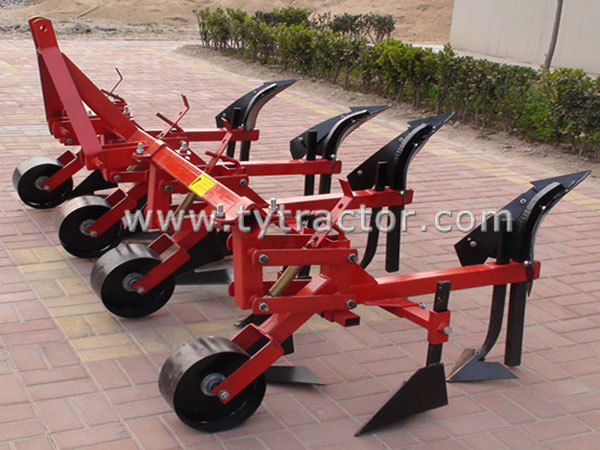

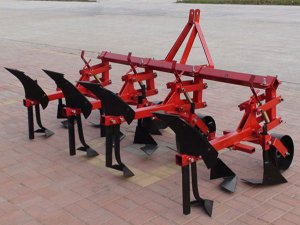

3ZY Tyne Ridging Cultivator, Tractor 3 Point Cultivator
Go back to Catalog: Cultivator
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
3ZY Tyne Ridging Cultivator Series
Technique parameter:
This type of tractor cultivator andridger used for ridge the plot, till the spacings before and initially after the crops spring up, The ridger with a harrow or a dressing unit operates on all mineral soils containing minimum rocks, with absolute humidity 13-20% for the layer 0…12 cm. The cultivator/ ridger shaped ridges with better physical properties on medium textured soil; however both drawn cultivators/ ridgers had greater work-rates, and also needed less energy to cultivate a unit of area.
• Heat treated, high carbon spring steel tines
• Multifunction, can achieve cultivation and ridge shaping at the same time
• The distance between rows are adjustable
• Multifunction, can achieve cultivation and ridge shaping at the same time
• The distance between rows are adjustable
| Model | unit | 3ZY-1.2 | 3ZY-2.0 | 3ZY-2.8 |
| Working width | mm | 1200 | 2000 | 2800 |
| No.of legs | 2 | 3 | 4 | |
| Working depth | mm | 100-240 | ||
| Row spacing | mm | 500~800 | ||
| Total weight | kg | 150 | 210 | 290 |
