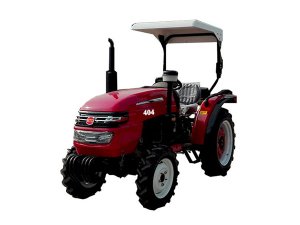

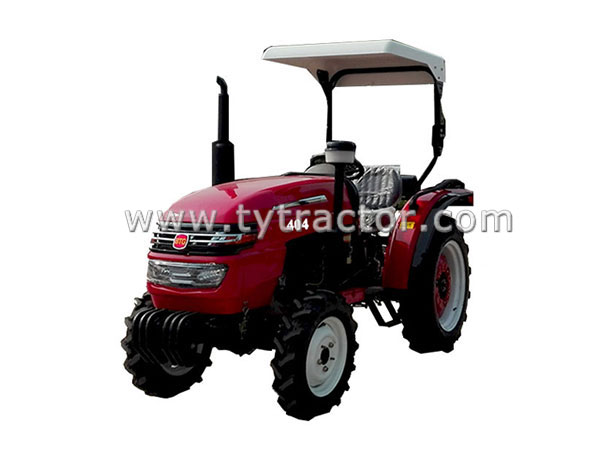

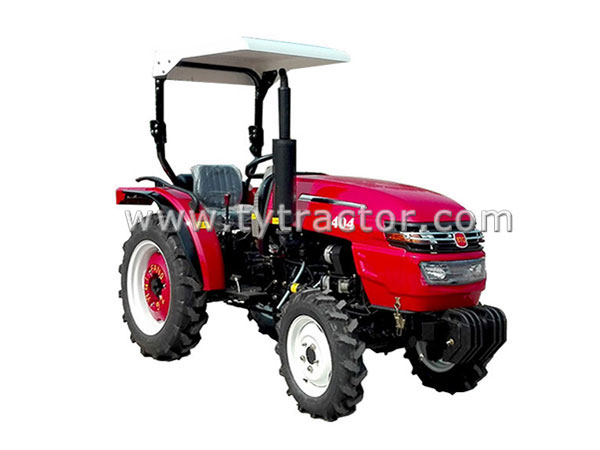

404 Tractor, 40HP Tractor, 4WD Tractor with Sunshade
Go back to Catalog: 20HP-50HP Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
404 Tractor Series
| 404 Tractor Specifications | |||
| Model | 404 | ||
| Type | 4*4 | ||
| (mm)Dimensions of tractor | Length | 2900 | |
| Width | 1560 | ||
| Height | 1896 | ||
| Tread | Front Wheel | 1200 | |
| Rear Wheel | 1200 | ||
| WheelBase | 1690 | ||
| Min.GroundClearance | 300 | ||
| (kg)Dry Mass | 1350 | ||
| Engine | Model | LD4L23/YTO490 | |
| Type | Vertical Water Cooledand 4-stroke | ||
| (kw)Rated Power | 29.4 | ||
| (r/min)Rated Rev. | 2400 | ||
| Fuel | Diesel Oil | ||
| Tire | FrontWheel | 6.50-16 | |
| Rear Wheel | 9.50-24/11.2-24 | ||
| Clutch | Dry-friction,single stage or Dry-friction,Two Stage | ||
| Steering | Mechanical Type or Hydraulic Type | ||
| Transmission Box | (4+1)x 2 | ||
| Suspension Type | Rear three-point suspension Class I | ||
| PTO shaft | (r/min)Type and Rev | 540/760 | |
| SplineSize | I38 Rectangle Spline With 8 teeth (8×28.91×38×8.69) | ||
| Structure and specification are subject to change without notice. | |||
