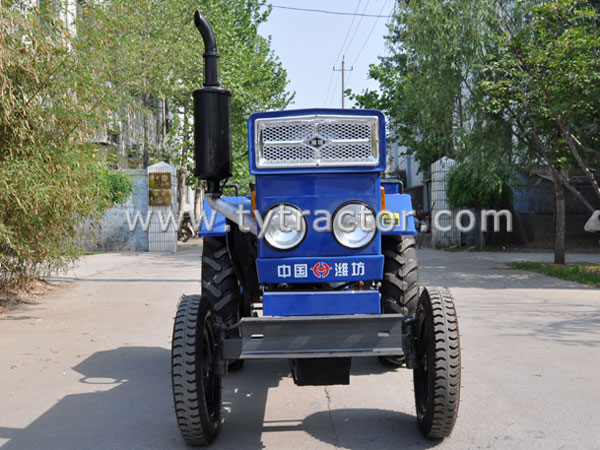

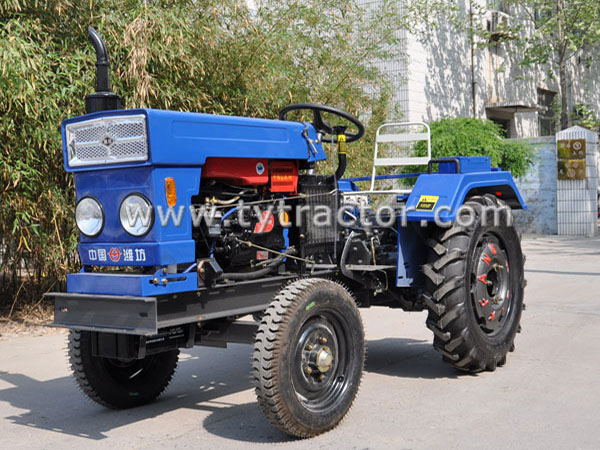

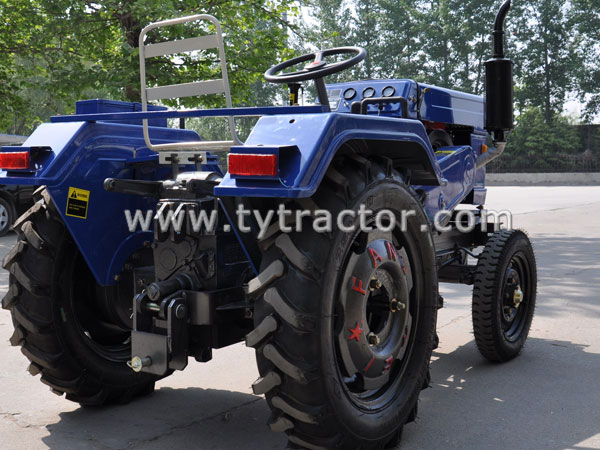

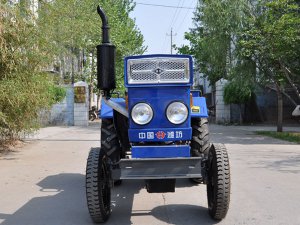

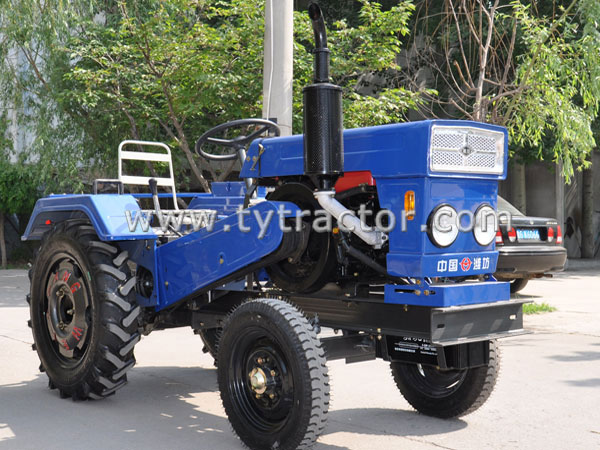

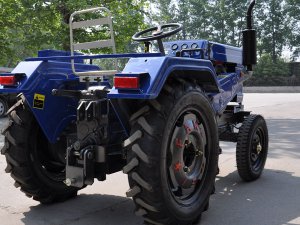

Belt Tractor F6+R1 Gear Shift
Go back to Catalog: Belt Drive Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Belt Tractor F6+R1 Gear Shift
Tractor (single cylinder diesel engine) features as follow:
2) Starting method: Electric ( or choice hand start )
3) Wheel driving: 4 x 2 and 4 x 4
4) Clutch: Single-stage (or choice double-stage)
5) Steering: Mechanical (or choice hydraulic )
6) Other accessories: 2/3 share plough, rotary tiller, ditching machine, harvester, cave digging machine, trailer and rotary seed drill
|
Type
|
A150
|
A170
|
A180
|
A200
|
|
Power
|
15HP, 4x2
|
17HP, 4x2
|
18HP , 4x2
|
20HP , 4x2
|
|
Engine Model
|
S1100
|
1105
|
1110
|
1115
|
|
Start mode
|
Electric starting
|
|||
|
Machine size L*W*H (mm)
|
2500*1170*1750
|
2600*1170*1800
|
2600*1170*1800
|
2600*1170*1800
|
|
Wheel base (mm)
|
/
|
1450
|
1450
|
1450
|
|
Wheel tread F/R (mm)
|
940/960
|
940/960
|
940/960
|
900/960
|
|
Gear shift
|
6F+1R
|
|||
|
Tires spec F/R
|
4.00-12/7.50-16
|
4.5-14 /7.5-20
|
4.5-14 /7.5-20
|
4.5-14 /7.5-20
|
|
Steering
|
|
|
|
machinery steering
|
|
Service braking
|
shoe brake
|
|||
|
Parking Braking
|
Pedal brake
|
Latch Pedal
|
Latch Pedal
|
Mechanical hand brake
|
|
Suspension modes
|
Three point linkage,0 category
|
|||
|
Hydraulic pump
|
/
|
Gear pump
|
Gear pump
|
Gear pump
|
|
Lifting force(N)
|
/
|
|
|
≥3176
|
|
PTO
|
Side PTO
|
Side PTO
|
Side PTO
|
Side PTO
|
|
Type
|
A220
|
A240
|
A260
|
A280
|
A300
|
|
Power
|
22HP , 4x2
|
24HP 4x2
|
26HP 4x2
|
28HP, 4x2
|
30HP , 4x2
|
|
Engine Model
|
24
|
KM138
|
28ED
|
KM160ED
|
KM173ED
|
|
Start mode
|
Electric starting
|
||||
|
Machine size L*W*H (mm)
|
2600*1170*1800
|
2600*1170*1800
|
2600*1170*1800
|
2650*1170*1800
|
2650*1170*1800
|
|
Wheel base (mm)
|
1450
|
1450
|
1450
|
1450
|
1450
|
|
Wheel tread F/R (mm)
|
900/960
|
900/960
|
900/960
|
900/960
|
900/960
|
|
Gear shift
|
6F+1R
|
6F+1R
|
6F+1R
|
6F+1R
|
6F+1R
|
|
Tires spec F/R
|
4.5-14 /7.5-20
|
4.5-14 /7.5-20
|
4.5-14 /7.5-20
|
4.5-14 /7.5-20
|
4.5-14 /7.5-20
|
|
Steering
|
|
|
|
|
|
|
Service braking
|
shoe brake
|
shoe brake
|
shoe brake
|
shoe brake
|
shoe brake
|
|
Parking Braking
|
Latch Pedal
|
Latch Pedal
|
Latch Pedal
|
Latch Pedal
|
Latch Pedal
|
|
Suspension modes
|
Three point linkage,0 category
|
Three point linkage,0 category
|
Three point linkage,0 category
|
Three point linkage,0 category
|
Three point linkage,0 category
|
|
Hydraulic pump
|
Gear pump
|
Gear pump
|
Gear pump
|
Gear pump
|
Gear pump
|
|
Lifting force(N)
|
≥3494
|
≥3812
|
≥4129
|
≥4447
|
≥4764
|
|
PTO
|
Side PTO
|
Side PTO
|
Side PTO
|
Side PTO
|
Side PTO
|
