Forage Cutter, Chaff Cutter, Corn Straw Forage Cutter Hay Shredder Machine
Go back to Catalog: Cutters and Shredders
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Forage Cutter Series

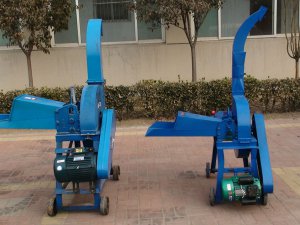

9Z-3A chaff cutter is a mechanical device for cutting wet or dry straw/hay into small pieces before being mixed together with other forage and fed to horses and cattle. This aids the animal's digestion and prevents animals from rejecting any part of their food. It mainly consist of 6 parts including frame, hopper, conveying belt, roller and over load protection device and others.
Features of chaff cutter
1. Various lengths of cuts of chaff can also be stored as forage/silage for feeding livestock in dry season.
2. Chaff cutter has compact design, which is easy operation and maintenance;
3. Two automatic feeding roller reduce labor and increase efficiency;
4. Sharp blades made from 65 manganese steel, ensures uniform length;
5. Overload device avoid clogging of electric chaff cutter;
6. Chaff cut length is adjustable which is widely used;
7. Agricultural chaff cutter made by durable use quality carbon steel.
9Z-3A chaff cutter is a mechanical device for cutting wet or dry straw/hay into small pieces before being mixed together with other forage and fed to horses and cattle. This aids the animal's digestion and prevents animals from rejecting any part of their food. It mainly consist of 6 parts including frame, hopper, conveying belt, roller and over load protection device and others.
Features of chaff cutter
1. Various lengths of cuts of chaff can also be stored as forage/silage for feeding livestock in dry season.
2. Chaff cutter has compact design, which is easy operation and maintenance;
3. Two automatic feeding roller reduce labor and increase efficiency;
4. Sharp blades made from 65 manganese steel, ensures uniform length;
5. Overload device avoid clogging of electric chaff cutter;
6. Chaff cut length is adjustable which is widely used;
7. Agricultural chaff cutter made by durable use quality carbon steel.
| Model | Speed(r/min) | Output | Weight | Power | Cut length(mm) | Dimension(mm) |
| 9Z-3A | 800 | 3-5t/h | 150kg | 4kw | 12/16 | 1150*1250*1700 |
| 9Z-4.5A | 800 | 4.5t/h | 300kg | 5.5kw | 17/22/34/44 | 1737*1575*2315 |
| 9Z-6.5A | 650 | 6.5t/h | 420kg | 7.5kw | 12/18/25/35 | 1968*2147*2756 |
| 9Z-10A | 500 | 10t/h | 830kg | 15kw | 12/18/25/35 | 2630*2230*4120 |
