GF1 Single Cylinder Diesel Generator, 10kva 12kva 15kva 20kva 30kva Diesel Engine Generator

GF1 Single Cylinder Diesel Generator Series

1) 5-24KW series of ordinary diesel generating sets have been provided with high quality water-cooled (condenser) diesel engine. those engine can work well in every kinds of conditions.

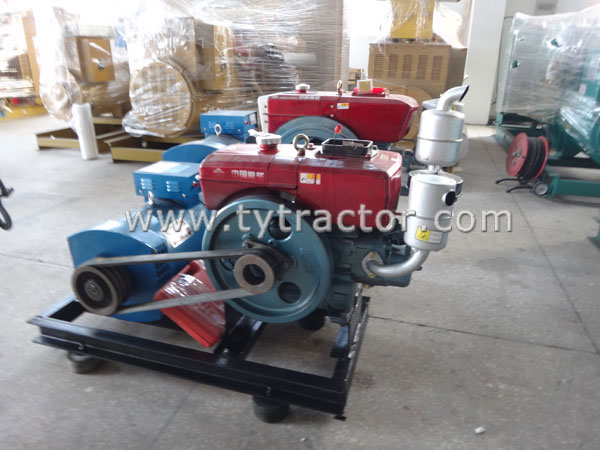

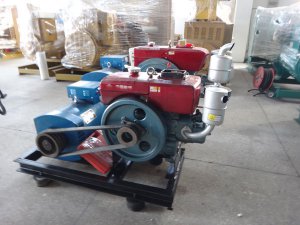

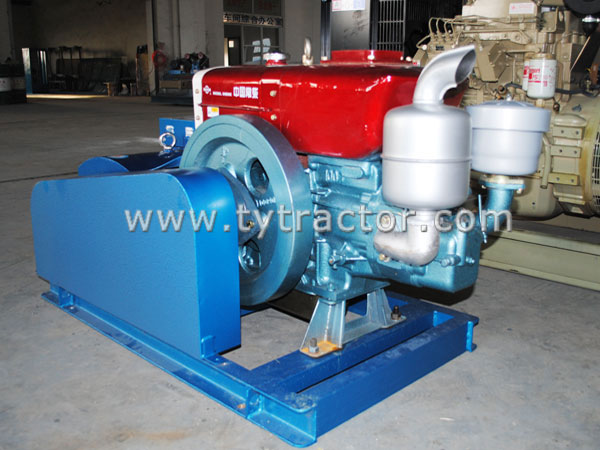

2) The structure of generating sets, the engine has been coupled with alternator through v-belt or coupled directly with alternator,both of them have bee installed on the basis of anti-shock pad, The gen-sets has been fixed on the frame of shock pipes which has four wheels.

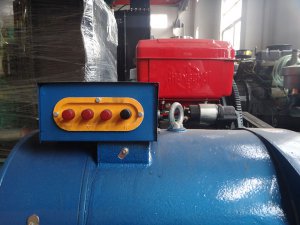

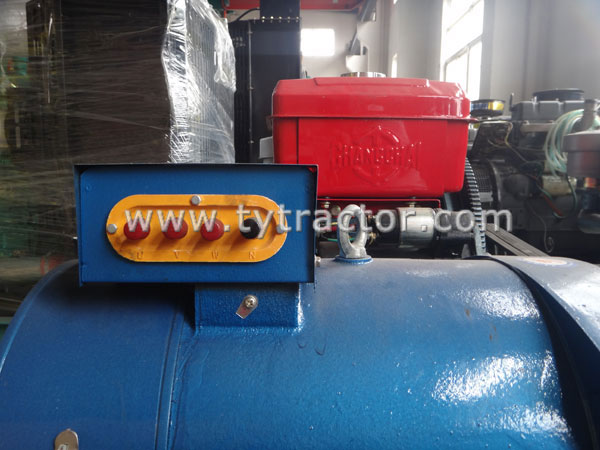

3) Other features: It is easy to operate and maintain, control panel, capacitor type, voltage regulator, no-fuse circuit breaker, over-current protection, wheels type design, double-shaft balance design, electric starting.



Other Main Performance:

1.Voltage stead-state regulation ±1% fluctuation ratio 1.5% transient-state regulation -15~20% stead time 5s Frequency stead-state regulation 5% fluctuation ratio 1.5% Transient-regulation ±10% stead time 5s.

2.The noise of gen-sets should be no more than 85db(a).



Gurrantee:


single-cylinder diesel generator set come with one year warranty,During maintenace period, kada company will provide easy damageable spare parts for our customer to repair and give our customer Technical Adviser.Over expiration,kada company will provide pay easy damageable spare parts for Our customer to repair and give our customer Technical Adviser for ever,
