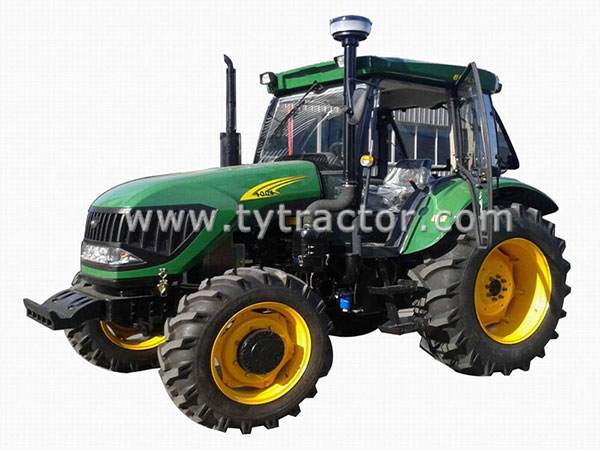

HM1004 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
HM1004 Tractor Series
Product Parameters
Product Parameters
| Model | HW1004 | HW1104 | HW1204 | HW1304 | HW1404 | ||
| Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | 4×4 Wheeled Type | ||
|
Dimensions of Tractor (mm) |
Length | 4480 | 4480 | 4480 | 4480 | 4480 | |
| Width | 2050 | 2050 | 2050 | 2050 | 2050 | ||
| Height | 2570 | 2570 | 2570 | 2570 | 2570 | ||
| Tread | Front Wheel | 1610(usual) | 1610(usual) | 1610(usual) | 1610(usual) | 1610(usual) | |
| Rear Wheel | 1608(usual) | 1608(usual) | 1608(usual) | 1608(usual) | 1608(usual) | ||
| Wheel Base | 2480 | 2480 | 2480 | 2480 | 2480 | ||
| Min. Ground Base | 405(the bottom of front axle) | ||||||
| Min. Usage Mass(kg) | 4200 | 4200 | 4200 | 4200 | 4200 | ||
| Engine | Model | YTO LR4M3Z | YTO LR4M3Z | YTO LR6B5-23 | YTO LR6M5-23 | YTO LR6M3Z-23 | |
| Type | Vertical, water cooled and 4-stroke | ||||||
| Rated Power(kw) | 66.2 | 80.8 | 88.2 | 95.6 | 103 | ||
| Rated Rev.(r/min) | 2300 | 2300 | 2300 | 2300 | 2300 | ||
| Fuel | Diesel Oil | Diesel Oil | Diesel Oil | Diesel Oil | Diesel Oil | ||
| Tire | Front Wheel | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 | 12.4-24 | |
| Rear Wheel | 16.9-34 | 16.9-34 | 16.9-34 | 16.9-34 | 16.9-34 | ||
| Clutch | Dry-friction, single disc and two stage | ||||||
| Steering | Hydraulic type | ||||||
| Transmission Box | 4×(2+1)×2 Composed | 4×(2+1)×2 Composed | 4×(2+1)×2 Composed | 4×(2+1)×2 Composed | 4 ×(2+1)×2 Composed | ||
| Suspension Type | Post Positioned Tri-point Suspension Catalogue II or III (optional) | ||||||
| PTO | Type and Rev.(r/min) |
Post-position, independent, 760/850 or 540/1000 or 540/760 (optioanl) |
|||||
| Spline Size | I38 Rectangle Spline with 8 teeth | ||||||
