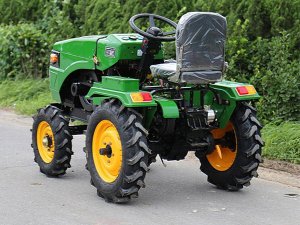

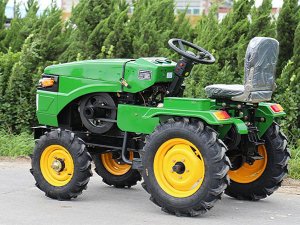

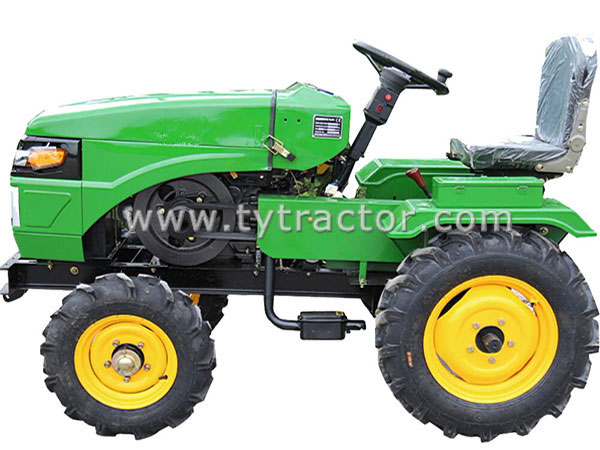

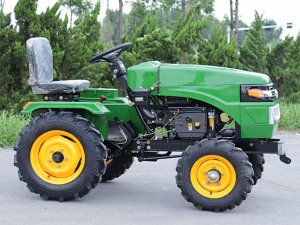

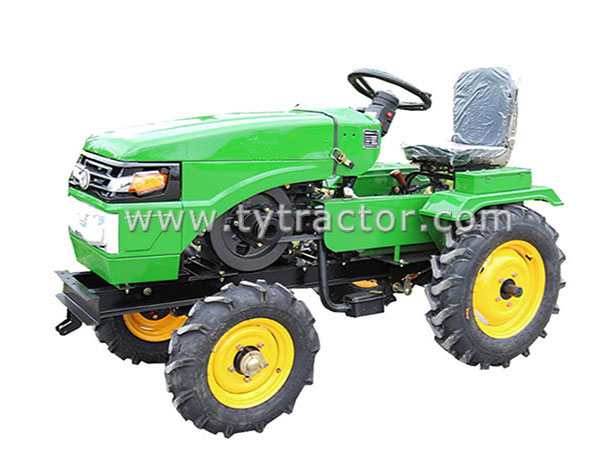

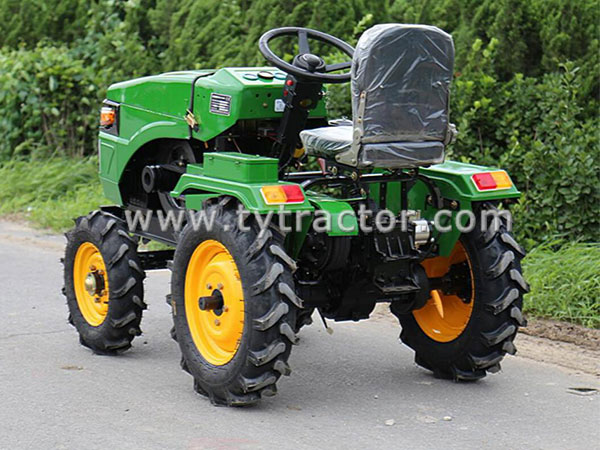

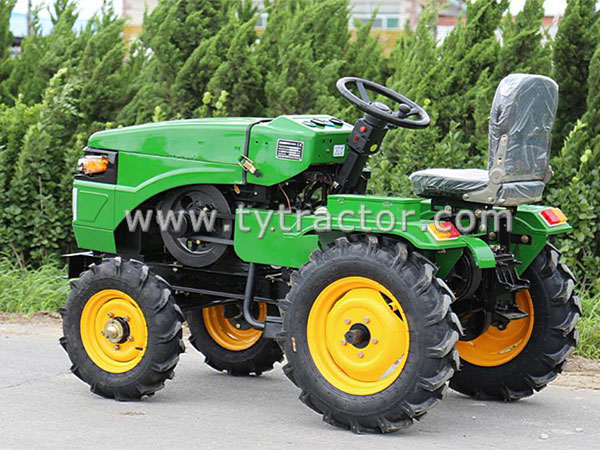

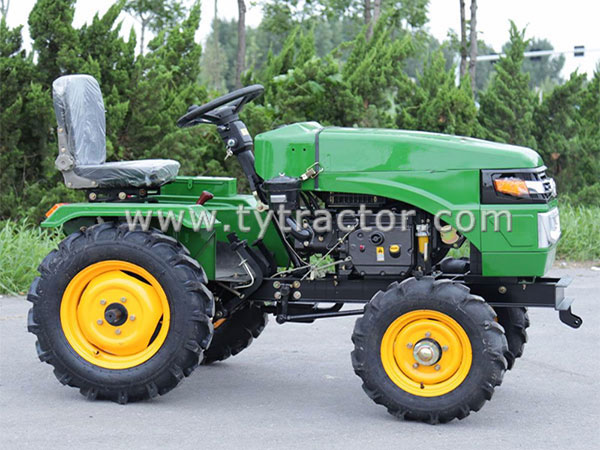

HM244 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
HM244 Tractor Series
Product Application
Model: TY 240/244
Wheeled type: 4x2/4x4
Length (mm): 2654/2768
Width (mm): 1296/1514
Height (mm): 1365
Front Wheel Tread (mm): 1000 or 1200
Rear Wheel Tread (mm): 1000 or1200
Min Ground Clearance (mm): 330/266 mm
Dry Mass (kg): 1010/1130
Engine:
Model : 295
Type: Vertical, 2-Cylinder, Water Cooled and 4-stroke)
Rated Power (kw): 18.4
Rated Rev (r/min): 2400
Fuel: Diesel Oil
Clutch: Dry-friction, Single Stage
Steering: Mechanical Type or Hydraulic type
Transmission Box: (3+1)x2
Theoretical Speed (km/h):
Forward: 2.11, 4.18, 6.97, 9.77, 19.31, 32.19
Reverse: 1.68, 7.75
Tyre :
Front wheel: 4.00-16/6.00-12
Rear wheel: 8.30-24
Suspension Type: Post Positioned Tri-point Suspension Catalogue 0
PTO shaft:
Type and Rev: Non-independent Type 540
Spline Size: I35 Rectangle with 6 teeth(6-28.91x34.79x8.69)
Packing mode: With iron frame
Qty. /40’ FCL: 22/20 sets
Wheeled type: 4x2/4x4
Length (mm): 2654/2768
Width (mm): 1296/1514
Height (mm): 1365
Front Wheel Tread (mm): 1000 or 1200
Rear Wheel Tread (mm): 1000 or1200
Min Ground Clearance (mm): 330/266 mm
Dry Mass (kg): 1010/1130
Engine:
Model : 295
Type: Vertical, 2-Cylinder, Water Cooled and 4-stroke)
Rated Power (kw): 18.4
Rated Rev (r/min): 2400
Fuel: Diesel Oil
Clutch: Dry-friction, Single Stage
Steering: Mechanical Type or Hydraulic type
Transmission Box: (3+1)x2
Theoretical Speed (km/h):
Forward: 2.11, 4.18, 6.97, 9.77, 19.31, 32.19
Reverse: 1.68, 7.75
Tyre :
Front wheel: 4.00-16/6.00-12
Rear wheel: 8.30-24
Suspension Type: Post Positioned Tri-point Suspension Catalogue 0
PTO shaft:
Type and Rev: Non-independent Type 540
Spline Size: I35 Rectangle with 6 teeth(6-28.91x34.79x8.69)
Packing mode: With iron frame
Qty. /40’ FCL: 22/20 sets
