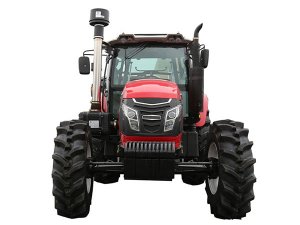

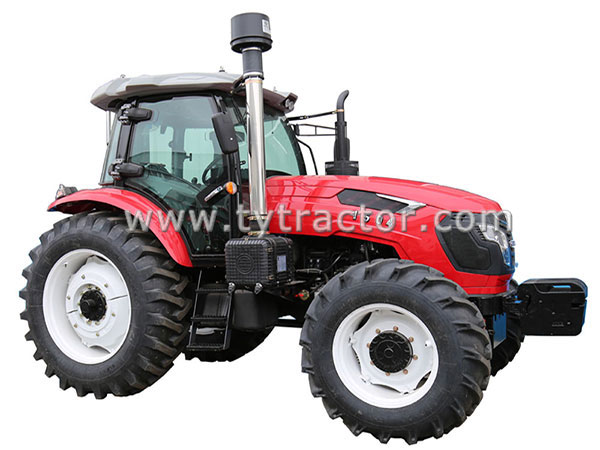

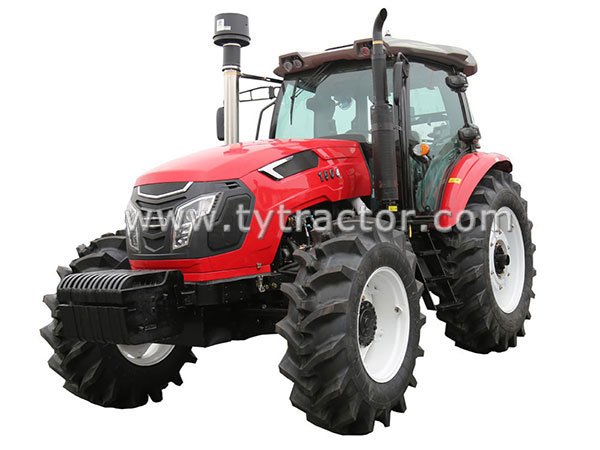

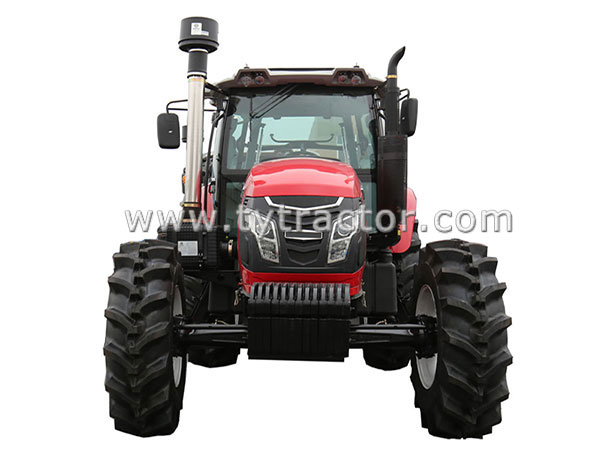

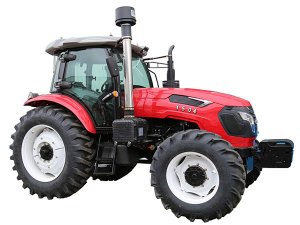

HM1504 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
HM1504 Tractor Series
1.Large power garden tractors match with high quality engine of YTO ,good reliability,large torque backup,low fuel consumption,high economic.
2. Farm tractors equip 13 inch double action clutch,high transmission capacity,reliable effect,more comfortable in operation.
3. Gear box of cheap price tractors has 4*(3+1),i.e. 12 forward gears,4 reverse gears,the gear sleeve shift,a reasonable matching matching,high operation efficiency.
4. Wheel agriculture equipment tractors use of independent power output device,stable transmission,large bearing capacity.
5. Farming wheeled tractors have static hydraulic disc brake,the braking torque,braking effect is good.
6. Chinese supplier tractors have pusher-type lifter,independent oil supply,improve system performance and reliability,optional multiple sets of hydraulic output.
7. Equipment machinery tractors of final drive using the planet reducer,compact structure,large reduction ratio.
8.Bigger chassis,more reliable performance.
9.Large oil tank,excellent traction and lifting force.
1.Large power garden tractors match with high quality engine of YTO ,good reliability,large torque backup,low fuel consumption,high economic.
2. Farm tractors equip 13 inch double action clutch,high transmission capacity,reliable effect,more comfortable in operation.
3. Gear box of cheap price tractors has 4*(3+1),i.e. 12 forward gears,4 reverse gears,the gear sleeve shift,a reasonable matching matching,high operation efficiency.
4. Wheel agriculture equipment tractors use of independent power output device,stable transmission,large bearing capacity.
5. Farming wheeled tractors have static hydraulic disc brake,the braking torque,braking effect is good.
6. Chinese supplier tractors have pusher-type lifter,independent oil supply,improve system performance and reliability,optional multiple sets of hydraulic output.
7. Equipment machinery tractors of final drive using the planet reducer,compact structure,large reduction ratio.
8.Bigger chassis,more reliable performance.
9.Large oil tank,excellent traction and lifting force.
| Specification Sheet | ||||||
|
Engine |
Rated Power (HP/KW) | 150HP/110.3KW | ||||
| Rated Speed(r/min) | 2300 | |||||
| Engine Model | YTO 6 cylinder, water-cooling, In-line, Direct Injection | |||||
| Drive Type | 4×4 | |||||
| Dimension | Structure Weight(KG) | 5050 | ||||
| Length×Width×Height(mm) | 5060×2345×2995 | |||||
| Min.ground clearance(mm) | 395 | |||||
| Wheel Base(mm) | 2543 | |||||
| Wheel Tread | Front Wheel(mm) | 1954 | ||||
| Rear Wheel(mm) | 1850 | |||||
| Working System | Tyre | Front Tyre | 14.9-26 | |||
| Rear Tyre | 18.4-38 | |||||
| PTO | Model&Size | φ35,6teeth (Optional: φ38,8teeth ) | ||||
| Speed(r/min) | 540/1000(Optional 540/760,760/850,540/1000) | |||||
| Clutch | Dual-acting Clutch | |||||
| Steering Type | Hydraulic Steering | |||||
| Gear Box | F16+R8 | |||||
| Oil Tank(L) | 150 | |||||
| Suspension Type | Class II, Three-point Rear Linkage | Differential Lock | ||||
| Rated Traction Force(KN) | 28 | |||||
| Rated Lifiting Force(KN) | 24 | |||||
| Cabin | 2 suits hydraulic output | |||||
| Optional Device And the Details |
| Hydraulic Output (If you need the Loader, backhoe, trailer and harrow and so on with hydraulic power) |
| Air Brake (If you need the trailer with air brake system) |
| Air condition ( If the weather is so hot) |
| Fan Heater ( If the weather is so cold) |
| Front Ballast (40kg/PC*11PCS) |
|
Rear Ballast (Front and Rear ballast is used to add the tractor self weight and add the traction power, So recommend to install) |
| Tool wheel |
