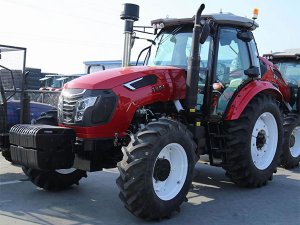

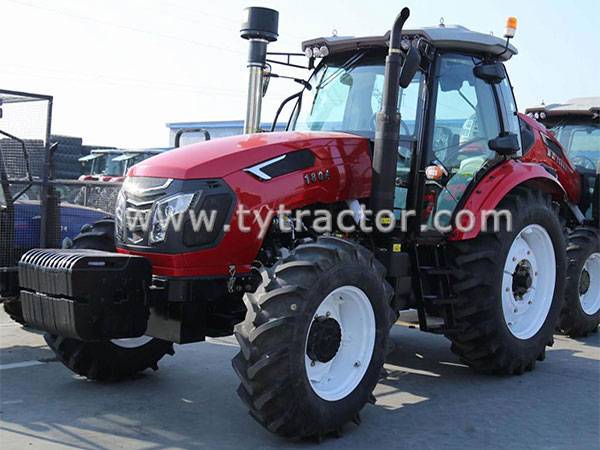

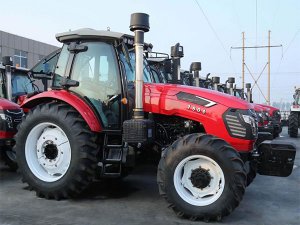

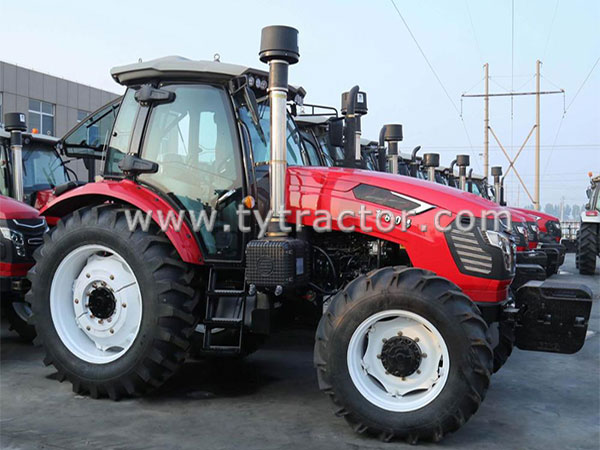

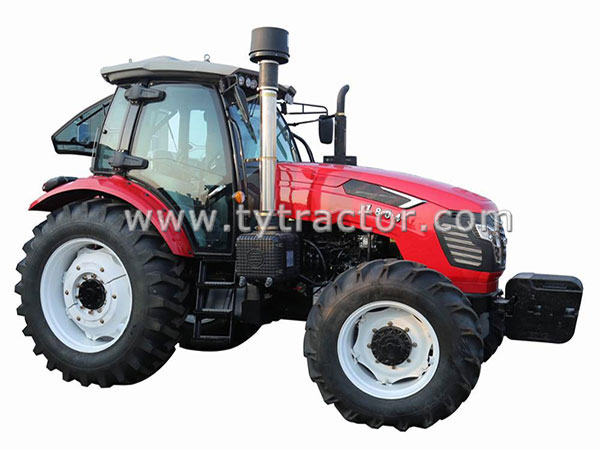

HM1804 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
HM1804 Tractor Series
| Model | HM1804 | HM2004 | HM2304 | |
| Drive Type | 4×4 | |||
| Engine | ||||
| Engine Manufacturer | Weichai Power Co.,Ltd. | Weichai Power Co.,Ltd. | DEUTZ | |
| Engine Model | WP6T180E200 | WP6T200E200 | BF06M1013FC | |
| Engine Type | turbocharge-Intercooled | |||
| Max Torque(N·m)/Revolving Speed(rpm) | 830/1400-1600 | 860/1400-1600 | 1008/1300-1500 | |
| Displacement(L) | 6.75 | 6.75 | 7.146 | |
| Fuel Tank Capacity(L) | 320 | 320 | 500 | |
| Engine Rated Power (kW/rpm) | 132.5/2200 | 147/2200 | 188/2200 | |
| Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | 230 | 230 | ||
| Drive Train | ||||
| Clutch | electric control wet multiple disc | |||
| Standard PTO speed(rpm) | 540/540E/1000/1000E | 540/540E/1000/1000E | 750/1000 | |
| Gears | 40F+40R | |||
| Steering Type | hydraulic steering | |||
| Gear Shift Mode | main transmission synchronizer shift, auxiliary transmission power shift | |||
| Break System | ||||
| Service Brake | pedal,hydraulic transmission, multi-disc,wet | |||
| Parking Brake | handle operation, multi friction plate | |||
| Hydraulic System | ||||
| Hydraulic Output Flow(L/min) | 65 | 80 | 80 | |
| Hydraulic Output Valve | 3 ways | 3 ways | 4 ways | |
| Working Device | ||||
| Three-Point Suspension | Category III | |||
| Max.Lifting Capacity(kN) | 31.8 | 35.28 | 40.6 | |
| Tillage Depth Adjustment | draft/ position/draft and position,floating adjustable | |||
| General Parameter | ||||
| Overall Dimension(L×W×H)mm | With cab | 5750×2320×3210 | 5750×2320×3210 | 6046×2727×3322 |
| Without cab | / | |||
| Wheelbase(mm) | 2880 | 2950 | 3172 | |
| Min. Operating Weight(kg) | With cab | 6300 | 6500 | 7980 |
| Without cab | / | |||
| Min. Ground Clearance(mm) | 400 | 400 | 350 | |
| Min.turning radius(mm) | 7000 | 8500 | 9150 | |
| Front Tire | 16.9-30 | 16.9-30 | 460/85R34 | |
| Rear Tire | 20.8-38 | 20.8-38 |
520/85R42 |
|
