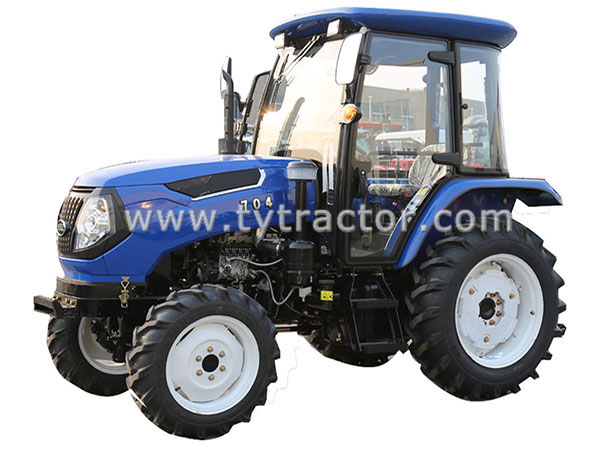

HM704 Tractor
Go back to Catalog: HM Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
HM704 Tractor Series
| HM704 SPECIFICATION | |
| Model | HM704 |
| Drive type | 4*4 |
| Engine | |
| Engine brand | QC |
| Model | 4108 |
| Type | 4 cylinder, water-cooling, In-line, direct injection |
| Rated speed (r/min) | 2400 |
| Engine power (hp) | 70hp |
| Transmission | |
| Clutch | Dry, Dual-stage type |
| PTO size | 8 teeth, φ38 |
| PTO Speed(rpm) | 540/760 |
| Gear shift | 12F+12R shuttle shift |
| Hydraulic system | |
| Hydraulic output valve | 2-Way optional |
| Three point linkage | |
| Category of 3-point link | Rea, Category II |
| Technical parameter | |
| Dimension(L*W*H) mm | 3900*1710*2160 |
| Min. net weight | 2500kg |
| Wheel base(mm) | 1980 |
| Front wheel tread(mm) | 1300 |
| Rear wheel tread(mm) | 1300-1500 |
| Min. clearance(mm) | 410 |
| Front tyre | 8.3-24 |
| Rear tyre | 14.9-30 |
| Steering type | Hydraulic steering |
