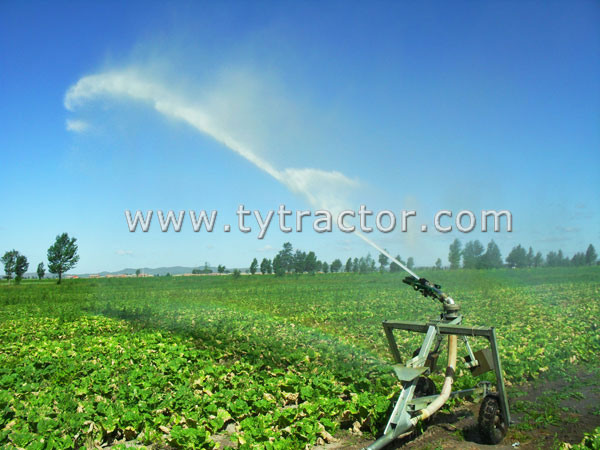

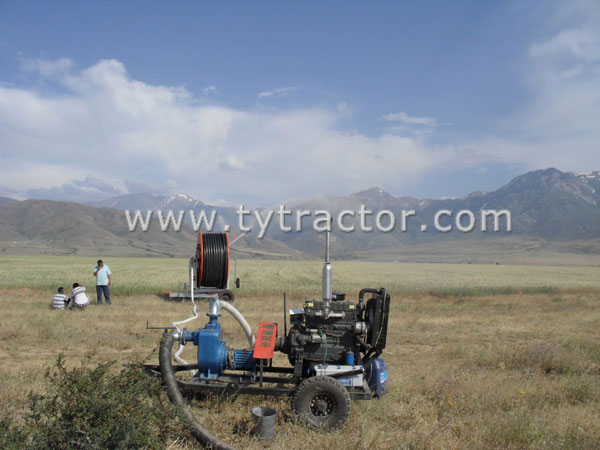

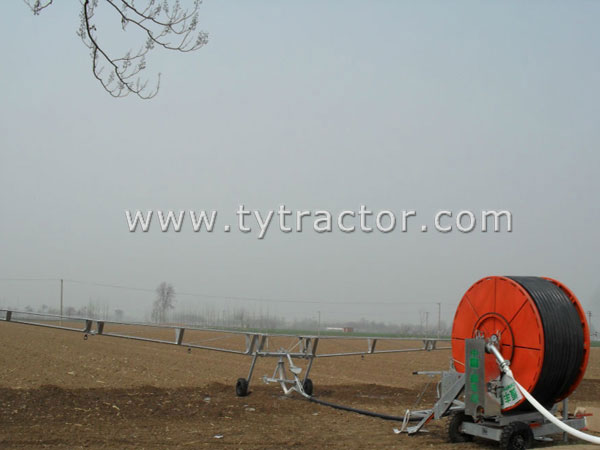

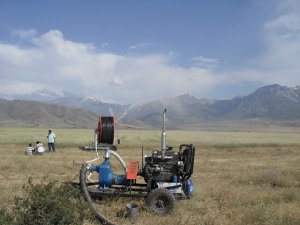

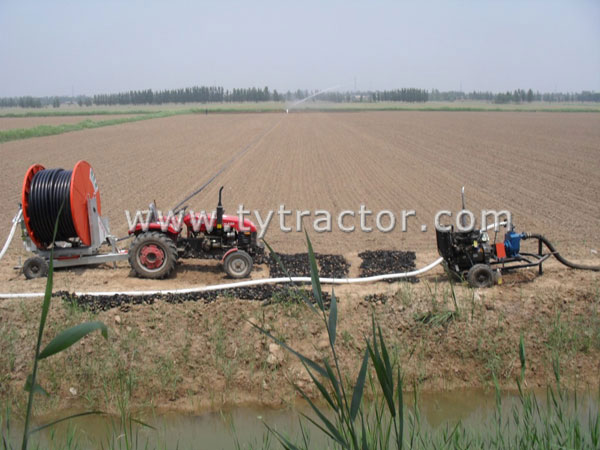

Large Farmland Irrigation with Gun Sprinkler, Agriculture Big Gun Sprinkler for Large Irrigation
Go back to Catalog: Irrigation Equipment
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
Large Farmland Irrigation with Gun Sprinkler Series
Large Farmland Irrigation with Gun Sprinkler, Agriculture Big Gun Sprinkler for Large Irrigation, Specification of agricultural mobile sprinkler irrigation system
Large Farmland Irrigation with Gun Sprinkler, Agriculture Big Gun Sprinkler for Large Irrigation, Specification of agricultural mobile sprinkler irrigation system
| Main pipe diameter of irrigation equipment | :6-5/8″ |
| Cantilever pipe diameter | 5-9/16″ |
| Pipe length | 22 feet/one,(6.7m) |
| Standard span of irrigation equipment | 54.5m(8 pipes)and 48m(7pipes ) |
| Main pipe Flange thickness | 10mm, Flange and pipe adopt double welded technology. |
| Working voltage | 460--380V/50--60HZ |
| Power supply mode | diesel generator and the local power company provide |
| Tire type of irrigation equipment | 14.9 X 24,vacuum irrigation tire |
| Motor power of irrigation equipment | 0.75~1.5 horse power |
| Motor speed reducer | output speed of electric transmission gear box :28--86RPM |
| Tire speed reducer | the drive ratio is 50:1 (American UMC) |
| Irrigation intensity | 5-50mm (within the range is adjustable) |
| Irrigation uniformity | ≥90% |
| Climbing capacity | ≤25% |
| Span body tower structure | “V”model tower |
| Sprayer of irrigation equipment | USA Nelson D3000;selective configuration: USA Nelson R3000 |
| Irrigation intake pressure | 0.20—0.35mpa |
| truss height of irrigation equipment | 3.25m |
| Sprayer spacing | 2.2-4m(the quantity:2-3 sprayer/water pipe |
| Main cable of irrigation equipment | 4*4mm²+6*1.5mm²(resist ultra violet and aging) |
| The end | LED working status instruction light |
| Main pipe of water supply | Adopt ground buried, standard is more than 6 inches. |
| Irrigation intake | 2 water inlet in the center of the machine head, quick pipe joint structure |
