LW-8 Backhoe, Backhoe Loader, Tractor Backhoe Attachment

Go back to Catalog: Backhoe

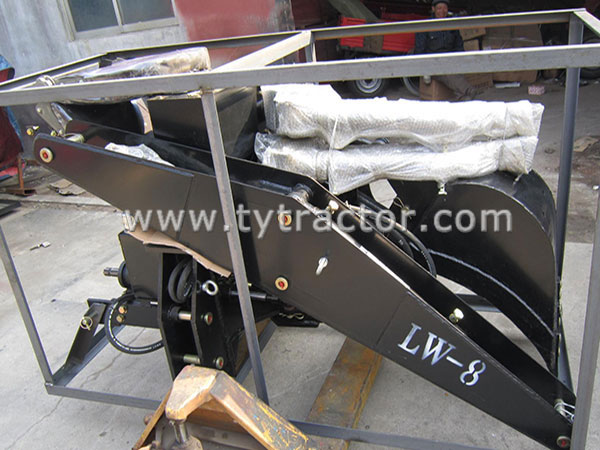

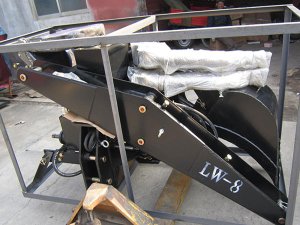

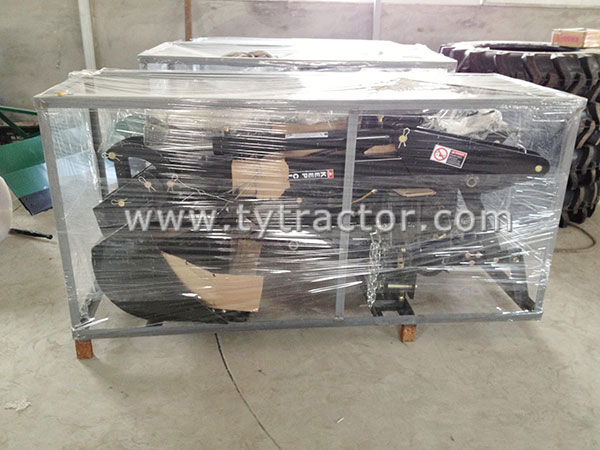

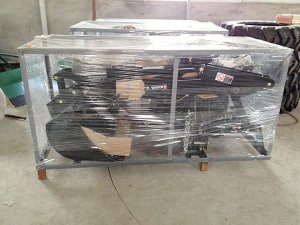

Package: Pallet Packing or as customer requier

Minimum Order: 1 SET

Delivery Time: 15 Days - 30Days

Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

By wheel: 2WD/4WD

Color : Green, Red, Blue, on request

Payment Terms: T/T, L/C At Sight

Product Detail
Online Inquiry

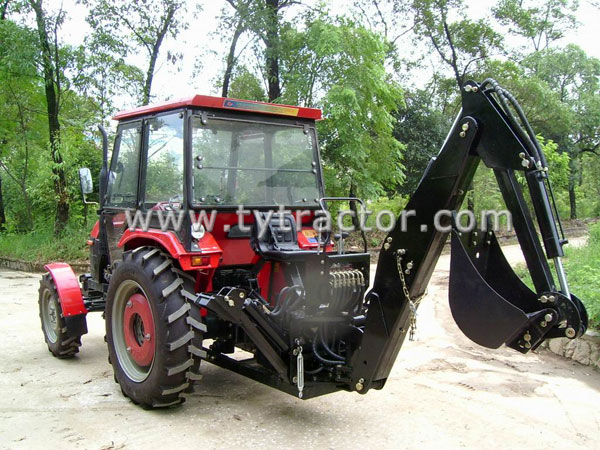

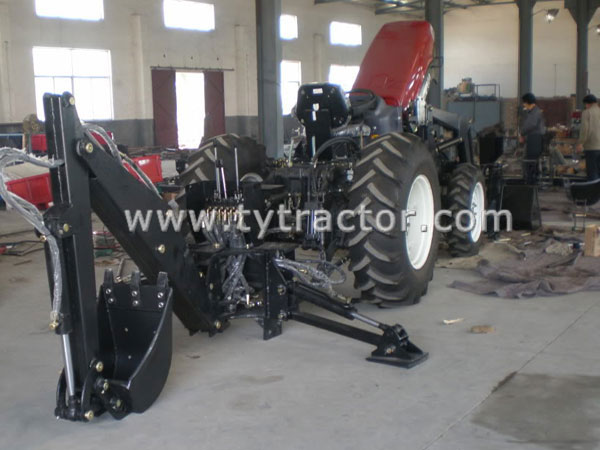

LW-8 Backhoe Series
Feature of backhoe loader:
1. Matched any tractor .

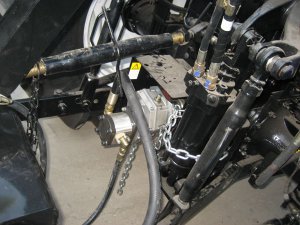

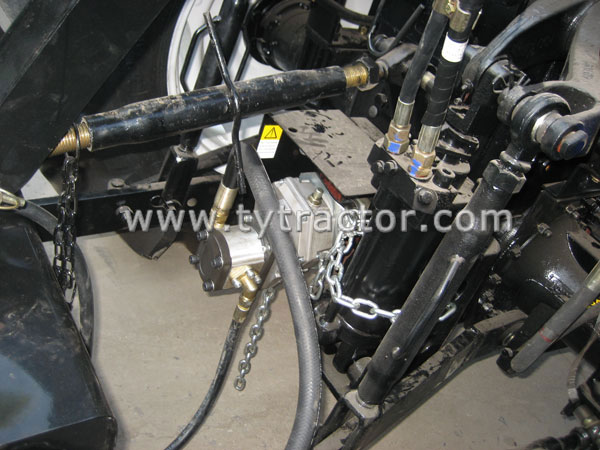

2.Powered by PTO driven with hydraulic pump.

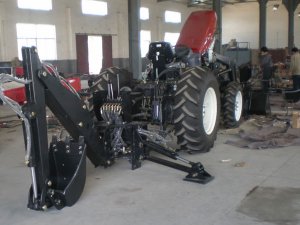

3.3-point hitched backhoe,steady structure
4.Oil tank ,oil show, gas-permeable cap

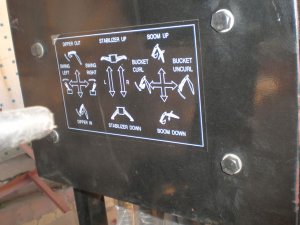

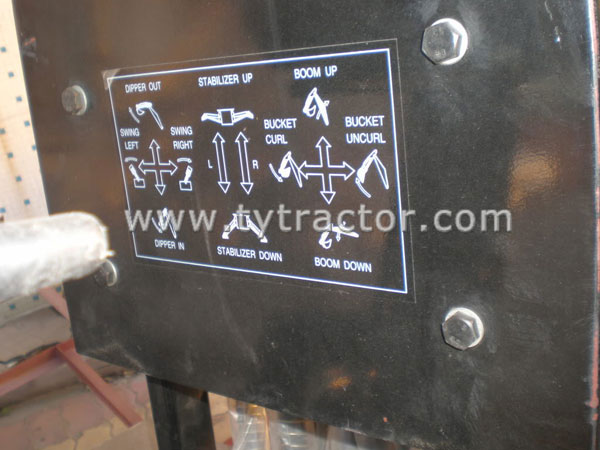

5.claw on boom, handed control valve
6.luxury spring seat and safety belt.
7.Optional buckets 8.Work independently, only need vehicle to tow to the working destination 9.Can be used for garden digging and construction digging

Model	LW-6	LW-7	LW-8	LW-9	LW-10	LW-12
Match power	15-25 HP	25-75 HP	45-85HP	50-100 HP	70—125HP	80-150HP
Max digging deep	1850 mm	2150 mm	2640 mm	2900 mm	3000 mm	3500
Digging depth flat bottom	1600 mm	2000 mm	2500 mm	2760 mm	2800 mm	3350
Digging height	2500 mm	3400 mm	3510 mm	3900 mm	4000 mm	4300
Transport height	1400 mm	1760 mm	2000 mm	2362 mm	2337 mm	2700
Unloading height	1733 mm	1878 mm	1952 mm	2413 mm	2540 mm	2770
Reaching the midline digging radius	2800 mm	3360 mm	3930 mm	3977 mm	3886 mm	4300
Bucket capacity	1300 kg	1200 kg	1600 kg	1900 kg	2600 kg	2700
Digging stick digging force	790 kg	950 kg	1000 kg	1270 kg	1720 kg	1900
Bucket rotation angle	160°	160°	160°	150°	150°	172°
Swing radian	140°	140°	140°	160°	160°	180°
Operation pressure	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa	16 Mpa
Bucket width	250 mm	300 mm	400 mm	450 mm	500 mm	550 mm
Bucket volume	0.03 m3	0.036 m3	0.048 m3	0.054 m3	0.06 m3	0.07 m3
