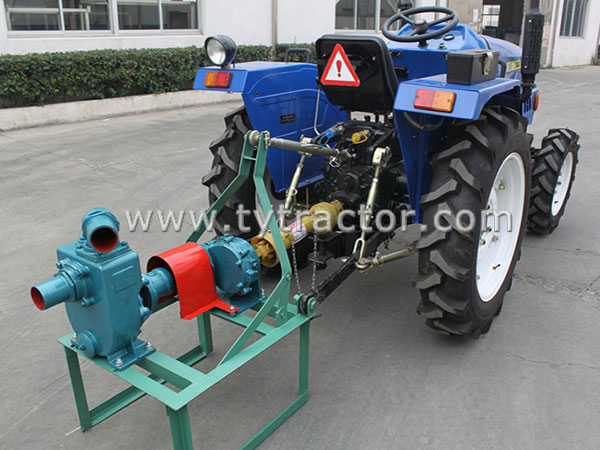

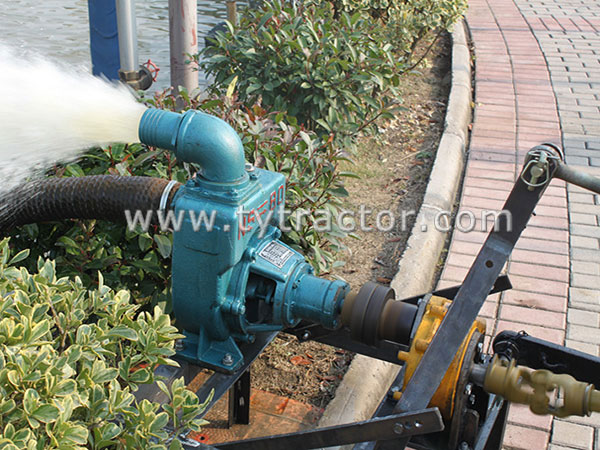

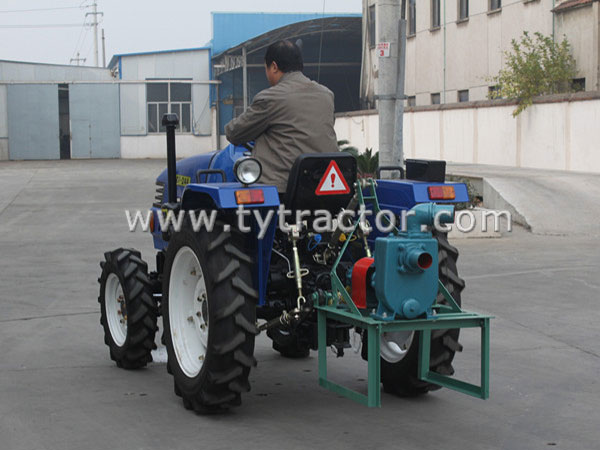

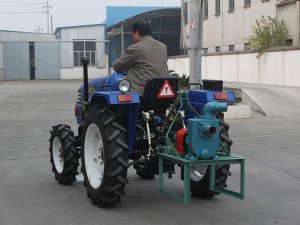

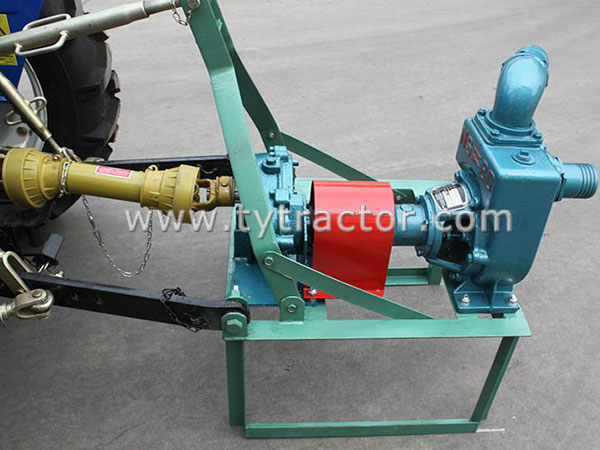

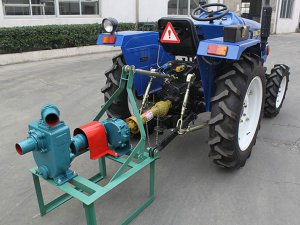

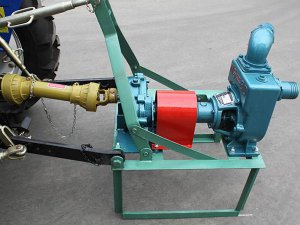

PTO Water Pump, Tractor Driven PTO Irrigation Water Pump
Go back to Catalog: Irrigation Equipment
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
PTO Water Pump Series
PTO water pump PTO pump for tractors
1.New product
2.Good quality
3.timely ship
4.power by 15hp-125hp tractor
PTO water pump PTO pump for tractors
1.New product
2.Good quality
3.timely ship
4.power by 15hp-125hp tractor
| MODEL | PTO4 | PTO6 | |
| WATER PUMP | Outlet size | 4inch | 6inch |
| Inlet size | 4inch | 6inch | |
| Speed | 3600rpm | 2000rpm | |
| Flow | 80m3/h | 180m3/h | |
| Lift | 25m | 8m | |
| Suction | 7m | 8m | |
| PTO | Input speed(RPM) | 540(GEARBOX) | 1000(PULLEY AND BELT) |
| Spline | 1-3/8spline,6-spline | ||
| Power model | 15hp-125hp tractor | 18hp-125hp tractor | |
| Package | SIZE | 660*660*880mm | 860*750*1150mm |
| Gross weight | 70KGS | 200KGS | |
| 20ft container | 48SETS | 36SETS | |
| 40ft container | 96SETS | 82SETS | |
| 40ft HQ container | 144SETS | 82SETS | |
