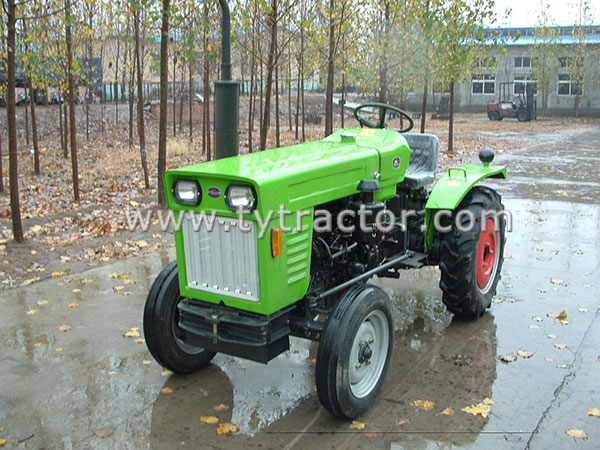

TS300 Tractor, Taishan 30HP Farm Tractor
Go back to Catalog: TS Tractor
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
TS300 Tractor Series
#A tractor the whole family can operate
Smooth full hydraulic power steering delivers no kickback in the steering wheel for less operator fatigue. It's really a tractor the whole family can operate.
Shuttle shift system is optional, gear shifting will be more lightweight and efficient, making your driving experience more relaxed.
Driver-oriented design idea provides easy access to all controls in the cab.
#Versatile performance
Hydraulic output is optional, making your tractor match more kinds of farm implements and meet your different demands.
Paddy wheel is optional, making it adapt to different working conditions
#Classic match
Transmission with 8 forward + 2 reverse gears (slip gear shift). You can choose to install the crawling gear structure which could double the number of the gears and provide you better traction. Another transmission with 10 forward + 2 reverse gears (clutch shift) is optional. You can also choose to install the crawling gear structure to make it become 20 forward + 4 reverse gears and provide you better traction. Driving speed covers the range of 0.32-38Km / h, meets the various demands of field working and road transportation.
#Safe and comfort
Equipped with anti-rollover safety frame, which could effectively guarantee the driver`s body safe when the tractor overturns.
Equipped with awnings, your job is no longer limited by the weather.
#A tractor the whole family can operate
Smooth full hydraulic power steering delivers no kickback in the steering wheel for less operator fatigue. It's really a tractor the whole family can operate.
Shuttle shift system is optional, gear shifting will be more lightweight and efficient, making your driving experience more relaxed.
Driver-oriented design idea provides easy access to all controls in the cab.
#Versatile performance
Hydraulic output is optional, making your tractor match more kinds of farm implements and meet your different demands.
Paddy wheel is optional, making it adapt to different working conditions
#Classic match
Transmission with 8 forward + 2 reverse gears (slip gear shift). You can choose to install the crawling gear structure which could double the number of the gears and provide you better traction. Another transmission with 10 forward + 2 reverse gears (clutch shift) is optional. You can also choose to install the crawling gear structure to make it become 20 forward + 4 reverse gears and provide you better traction. Driving speed covers the range of 0.32-38Km / h, meets the various demands of field working and road transportation.
#Safe and comfort
Equipped with anti-rollover safety frame, which could effectively guarantee the driver`s body safe when the tractor overturns.
Equipped with awnings, your job is no longer limited by the weather.
Technical Specifications
| Model | TS300 Tractor | TS304 Tractor | |
| Drive Type | 4*2 | 4*4 | |
| Engine | |||
| Engine Manufacturer | Wuzheng Shantuo Engine Co.,Ltd. | Wuzheng Shantuo Engine Co.,Ltd. | |
| Engine Model | SD2100TA | SD2100TA | |
| Engine Type | inline,vertical,water-cooled,four-stroke | inline,vertical,water-cooled,four-stroke | |
| Cylinder diameter(mm) | 100 | 100 | |
| Stroke(mm) | 115 | 115 | |
| Max Torque(N·m)/Revolving Speed(rpm) | ≥109.8/≤1650 | ≥109.8/≤1650 | |
| Displacement(L) | 1.81 | 1.81 | |
| Fuel Tank Capacity(L) | 51 | 51 | |
| Engine Rated Power (kW/rpm) | 22 | 22 | |
| Rated Operating Conditions Fuel Consumption Rate(g/kW·h) | ≤250 | ≤250 | |
| Drive Train | |||
| Clutch | Dry,single-stage | Dry,single-stage | |
| Standard PTO speed(rpm) | (540,1000)/(750,1000)/(540,750) | (540,1000)/(750,1000)/(540,750) | |
| Gears | 8F+2R/10F+2R | 8F+2R/10F+2R | |
| Speed range(Km) | 2.25~28.78 | 1.9~24.23 | |
| Steering type | mechanical steering | hydraulic steering | |
| Gear Shift Mode | sliding gear shift | sliding gear shift | |
| Break System | |||
| Service Brake | pedal,mechanical drive,closed shoe type | pedal,mechanical drive,closed shoe type | |
| Parking Brake | locked pedal | locked pedal | |
| Hydraulic System | |||
| Hydraulic Output Flow(L/min) | 30 | 30 | |
| Hydraulic Output Valve | 1 way(optional) | 1 way(optional) | |
| Working Device | |||
| Three-Point Suspension | postposition,Category I | postposition,Category I | |
| Max.Lifting Capacity(kN) | ≥4.95 | ≥4.95 | |
| Tillage Depth Adjustment | draft and position adjustable | draft and position adjustable | |
| General Parameter | |||
| Overall Dimension(L*W*H)mm | With cab | / | / |
| Without cab | 3105*1510*2105 | 3125*1455*2115 | |
| Wheelbase(mm) | 1705 | 1755 | |
| Min. operating weight(kg) | With cab | / | / |
| Without cab | 1370 | 1580 | |
| Min. Ground Clearance(mm) | 440 | 345 | |
| Min.turning radius(mm) | 2900 | 3000 | |
| Maximum Pull(KN) | 6.37 | 7.84 | |
| Front Tire | 5.0-15 | 6.5-16 | |
| Rear Tire | 11.2-24 | 11.2-24 | |
| Optional Disposition | |||
|
|
hydraulic steering, dual-stage clutch, shuttle gear(creeper gear), paddy tire, swing draw bar, ROPS with canopy, 1 group hydraulic output |
dual-stage clutch, shuttle gear(creeper gear), paddy tire, swing draw bar, rear counter weight, ROPS with canopy, 1 group hydraulic output |
|
