Vertical Electric Log Splitter, Electric Vertical Hydraulic Log Splitter
Go back to Catalog: Log Splitter
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

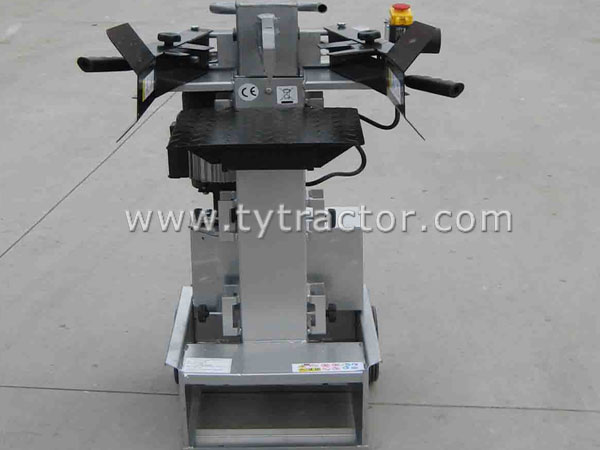

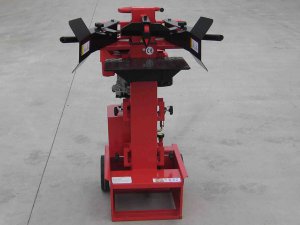

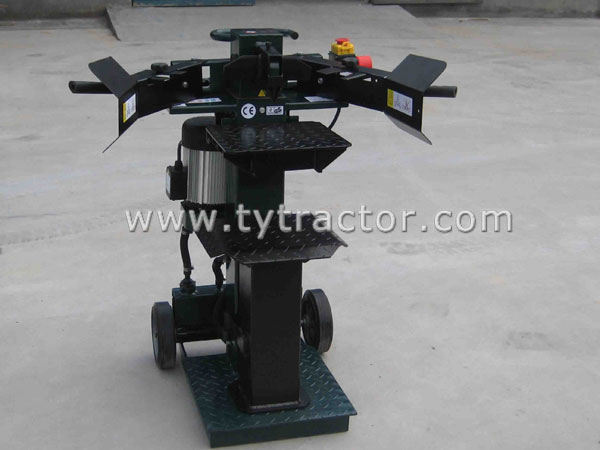

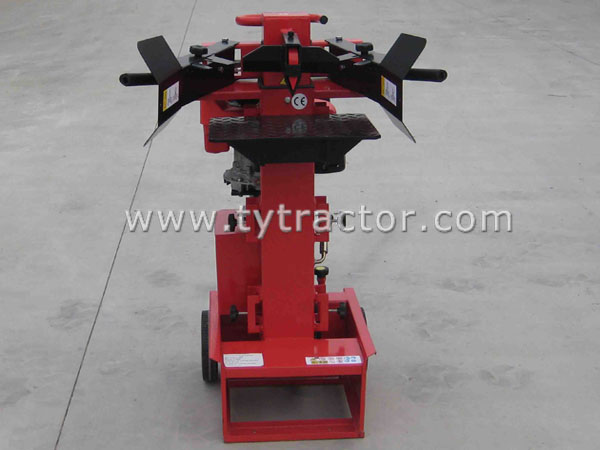

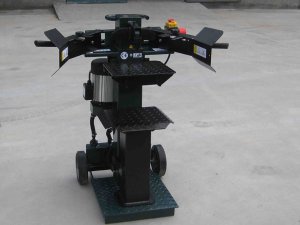

Vertical Electric Log Splitter Series
Vertical log splittter
1. Max split force:18ton&22ton
2. Model: LS without Electric motor
Model: LSM with Electri motor
3. Operation:double bar,two speeds
4. Log capacity:1050mm(L)x450mm(D)
Vertical log splittter
1. Max split force:18ton&22ton
2. Model: LS without Electric motor
Model: LSM with Electri motor
3. Operation:double bar,two speeds
4. Log capacity:1050mm(L)x450mm(D)
|
Model |
LS18 | LS22 | LSM18 | LSM22 |
| Electric Motor | NO | NO | 400V/50Hz/5.5kW | 400V/50Hz/5.5kW |
| Power | PTO | PTO | 400V/50Hz/5.5kW + PTO | 400V/50Hz/5.5kW + PTO |
| Max Split Force | 18T | 22T | 18T | 22T |
| Log Capacity |
1050mm(L) x450mm(D) |
1050mm(L) x450mm(D) |
1050mm(L) x450mm(D) |
1050mm(L) x450mm(D) |
| Working Direction | Vertical | Vertical | Vertical | Vertical |
| Operation | Double bar,Two speeds | Double bar,Two speeds | Double bar,Two speeds | Double bar,Two speeds |
| Net Weight | 285kg | 295kg | 300kg | 310kg |
| Gross Weight | 728kg/2pcs | 728kg/2pcs | 728kg/2pcs | 728kg/2pcs |
| Tractor HP | 18-60hp | 18-60hp | 18-60hp | 18-60hp |
