WHR Wheel Hay Rake, Tractor Rear Wheel Hay Rake
Go back to Catalog: Hay Rake
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
WHR Wheel Hay Rake Series

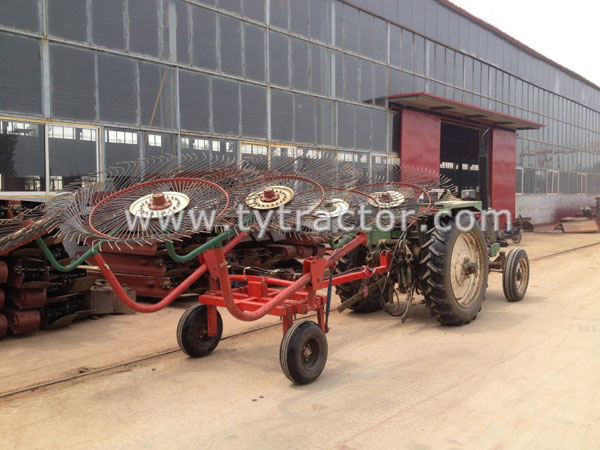

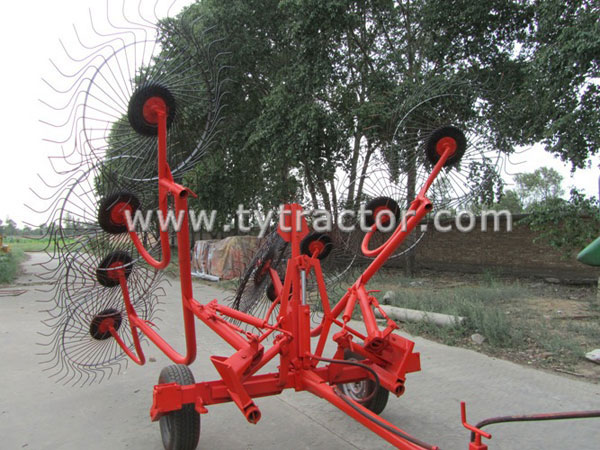

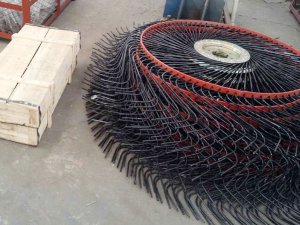

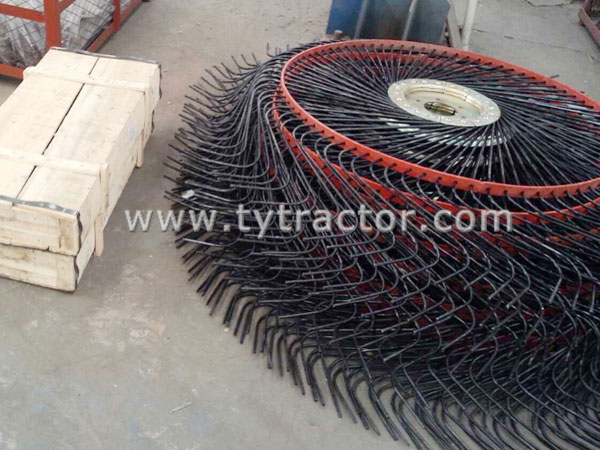

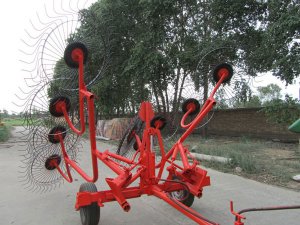

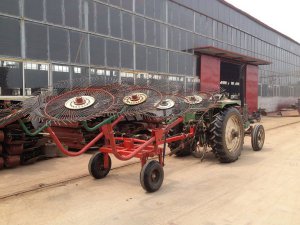

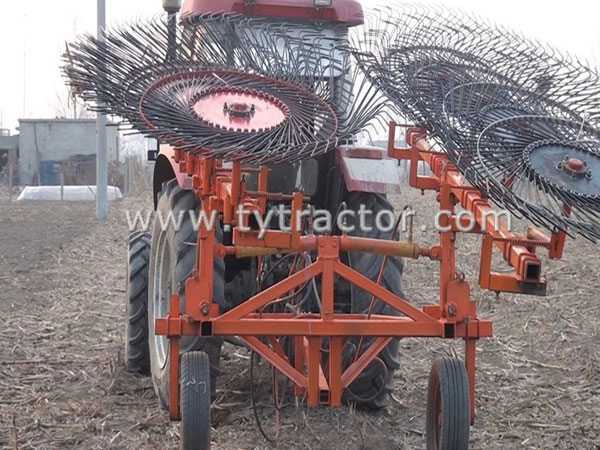

The series of rake and dry machine is consist of rack, rotary disk ,bracket, regulating handle ,wheel and so on,it can be rake,ted and revert.The machine use cam structure to invert the grass by one operation. The machine can ted the grass and rake it to stripe. To make the harvested Luce dry before bundling and storge, put the crop pave evenly, it’s helpful to evaporation of water. The teeder side also can make the crop to stripe when bundling and storge, improve the working efficiency. The model of 9LD-2.5 has special in multi-purpose, raking , teding and reverting; red the grass evenly and clearly, cut crop loss,improve the working effiency; easy operation,reliable performance,and good durable ability.
The series of rake and dry machine is consist of rack, rotary disk ,bracket, regulating handle ,wheel and so on,it can be rake,ted and revert.The machine use cam structure to invert the grass by one operation. The machine can ted the grass and rake it to stripe. To make the harvested Luce dry before bundling and storge, put the crop pave evenly, it’s helpful to evaporation of water. The teeder side also can make the crop to stripe when bundling and storge, improve the working efficiency. The model of 9LD-2.5 has special in multi-purpose, raking , teding and reverting; red the grass evenly and clearly, cut crop loss,improve the working effiency; easy operation,reliable performance,and good durable ability.
| Model | 9LD 2.5 | 9LD 3.5 |
| Structural type | rotary | rotary |
|
Dimension
(L*W*H)
|
2200*2500*900mm | 2200*2500*900mm |
|
Working width
|
2500mm | 3500mm |
| Efficiency | 6-12km/h | 6-12km/h |
| No. of tines /discs | 12 tines | 18 tines |
| Matched power | ≥18hp | ≥18hp |
| PTO Speed | 540r/s | 540r/s |
| Linkage | 3-point touched | 3-point touched |
| Weight | 160kg | 230kg |
