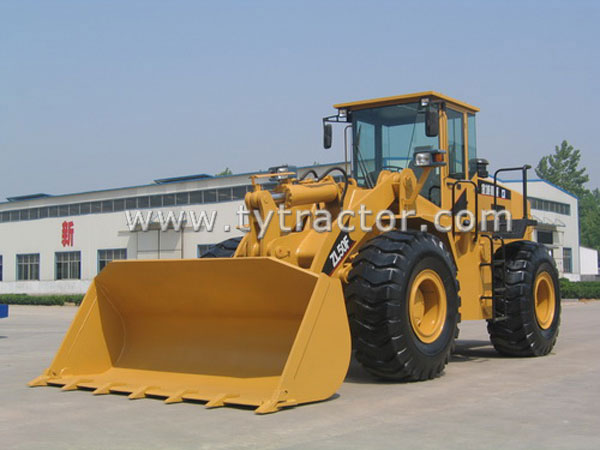

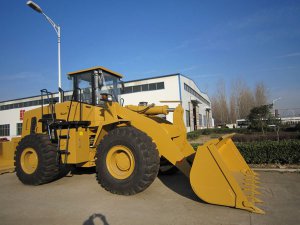

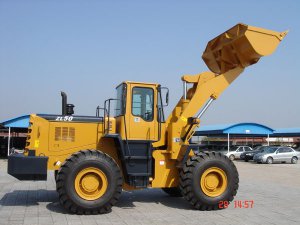

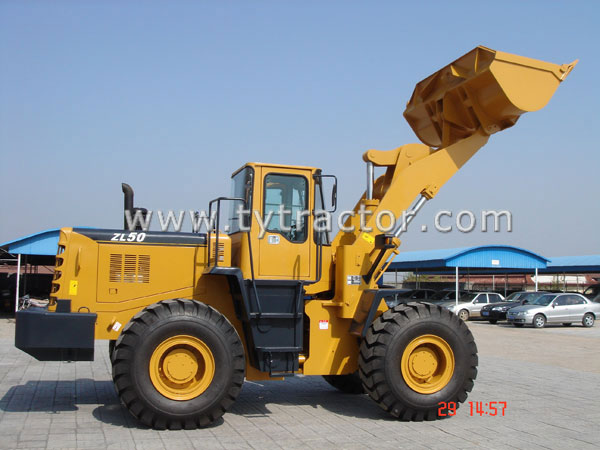

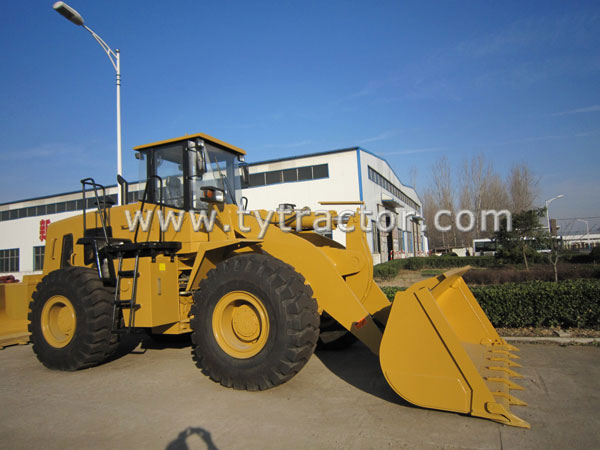

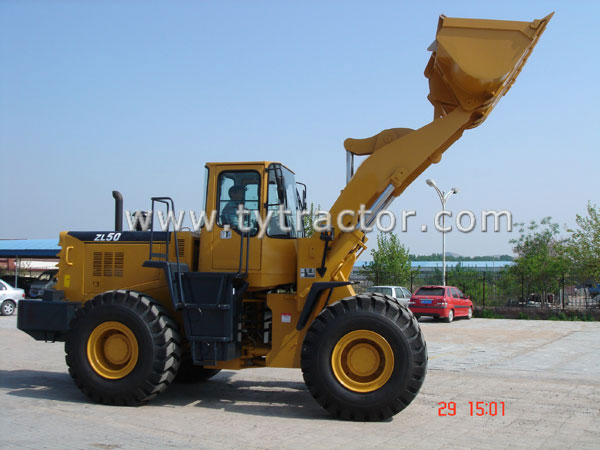

ZL50 Wheel Loader, 5Ton Wheel Loaders Manufacturer
Go back to Catalog: Wheel Loader
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
ZL50 Wheel Loader Series
1. Standard equipment
Mountain Raise 5ton wheel loader MR650B, with heavy duty style,big capacity 3.0cbm,
Weichai Styre 162kw ,high torque, low consumption engine, high-pressure 23.5-25 tires.
2.Option equipment
Heater,Air conditoner, Joystick etc. cab equipment for option!
Cummins Engine to meet different requirements!
3.Packing details:
1 set in 1 40'ft_container, unload the cab.
Main Specifications
1. Standard equipment
Mountain Raise 5ton wheel loader MR650B, with heavy duty style,big capacity 3.0cbm,
Weichai Styre 162kw ,high torque, low consumption engine, high-pressure 23.5-25 tires.
2.Option equipment
Heater,Air conditoner, Joystick etc. cab equipment for option!
Cummins Engine to meet different requirements!
3.Packing details:
1 set in 1 40'ft_container, unload the cab.
Main Specifications
|
Performance |
Rated load | 5000kg |
| Overall weight | 17100kg | |
| Rated bucket capacity | 3m3 | |
| Maximum tractive force | 152KN | |
| Maximum breakout force | ≥170KN | |
| Maximum grade ability | 30ºC | |
| Maximum dump height | 3150mm | |
| Maximum dump reach | 1250mm | |
| Overall dimension (L×W×H) | 7920×3050×3400mm | |
| Minimum turning radius | 6640mm | |
|
Engine |
Model | Weichai Steyr WD615 |
| Type | lnline water cooling dry cylinder injection | |
| No. of cylinder-bore/stroke | 6-126×130mm | |
| Rated power | 162kw--2400r/min | |
| Maximum torque | 860N.m | |
| Min fuel-consume ratio | ≤215g/kw.h | |
|
Transmission system |
Torque converter | YJ375 |
| Gearbox mode | Power shift normally engaged straight gear | |
| Gear shift | 4 forward shift 4reverse shift | |
| Maximum speed | 38km/h | |
|
Drive axles |
Main reducing spiral | bevel gear grade 1reduction |
| Decelerating mode | planetary reduction,grade 1 | |
| Wheel base (mm) | 3200mm | |
| Wheel tread | 2250mm | |
| Minimum ground clearance | 450mm | |
|
Hydraulic system |
System working pressure | 18MPa |
| Boom lifting time | 5.95±0.2s | |
| Total time | 10.95±0.5s | |
| Fuel tank capacity | 300L | |
| Function of leveling automatically | yes | |
|
Brake system |
Service brake | air over hydraulic disc brake on 4 wheels |
| Parking brake | manual parking brake |
