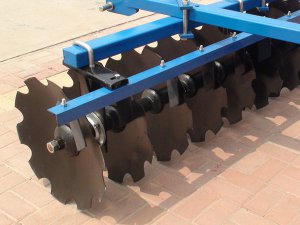

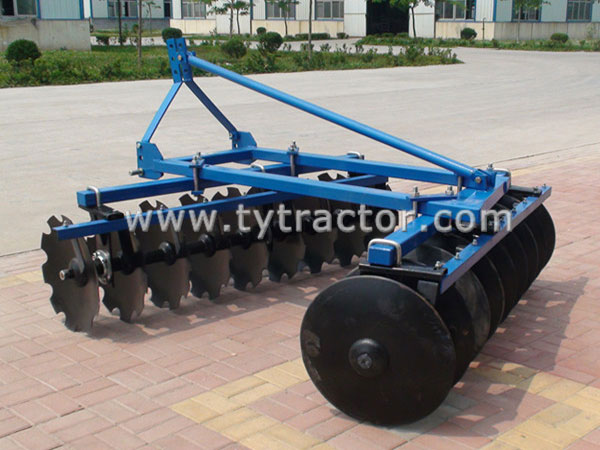

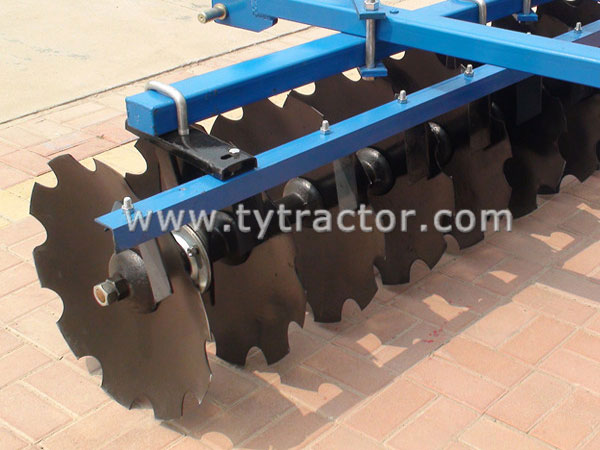

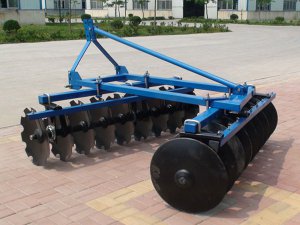

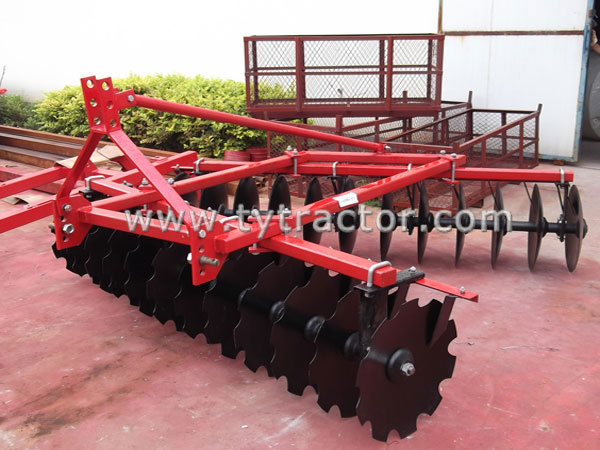

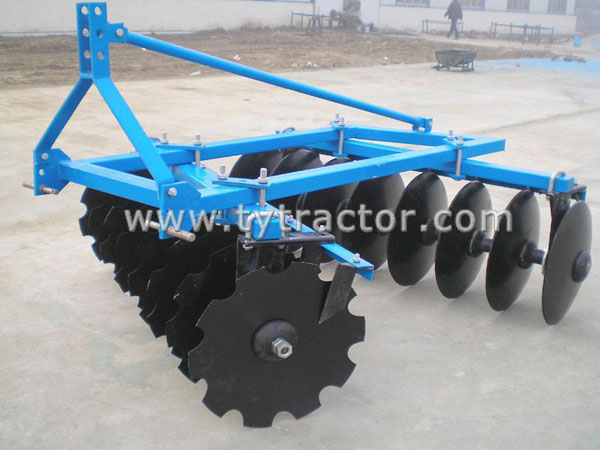

1BJX Middle Duty Disc Harrow, Tractor 3 Point Middle Duty Disc Harrow
Go back to Catalog: Disc Harrow
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
1BJX Middle Duty Disc Harrow Series
1BJX Series of Middle-Duty Disc Harrow:
Main Specifications:
1BJX series of offset tractor medium disc harrow is mainly applicable to clean the crop residue before tillage,break the hardened soil and return the chopped straw to the soil,and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land.With the efficient productivity,reasonable utilization of the power,great ability of cutting and shattering the soil,the soil surface is smooth and loosening after harrowing,it is well suitable for heavy clay soil,waster land and weedy field as well.
Features:
It is mounted medium disc harrow for 30-80hp tractor..
The materail of plough disc is 65Mn spring steel,it is more strong.
Strong and durable bearing.
Fit the scraper for each disc blade to clean the objects.
The working depth can be adjusted freely.
Main Tech Data:
1BJX Series of Middle-Duty Disc Harrow:
Main Specifications:
1BJX series of offset tractor medium disc harrow is mainly applicable to clean the crop residue before tillage,break the hardened soil and return the chopped straw to the soil,and also can crash the soil after tillage and level the land.
It can be used as tillage machine instead of plow on the cultivated land.With the efficient productivity,reasonable utilization of the power,great ability of cutting and shattering the soil,the soil surface is smooth and loosening after harrowing,it is well suitable for heavy clay soil,waster land and weedy field as well.
Features:
It is mounted medium disc harrow for 30-80hp tractor..
The materail of plough disc is 65Mn spring steel,it is more strong.
Strong and durable bearing.
Fit the scraper for each disc blade to clean the objects.
The working depth can be adjusted freely.
Main Tech Data:
| Model | unit | 1BJX-1.8 | 1BJX-2.0 | 1BJX-2.2 | 1BJX-2.4 | 1BJX-2.5 |
| Working width | m | 1.8 | 2.0 | 2.2 | 2.4 | 2.5 |
| Working depth | mm | 140 | 140 | 140 | 140 | 140 |
| Q’ty of disc | 16 | 18 | 20 | 22 | 24 | |
| Disc diameter | mm | 560 | 560 | 560 | 560 | 560 |
| Overall weight | kg | 390 | 434 | 463 | 604 | 760 |
| Fitted power | hp | 45 | 50 | 55~65 | 65~75 | 80 |
| Linkage | Standard three-point mounted | |||||
