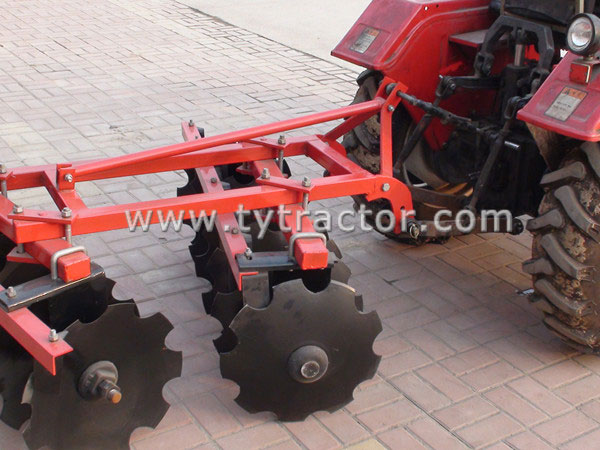

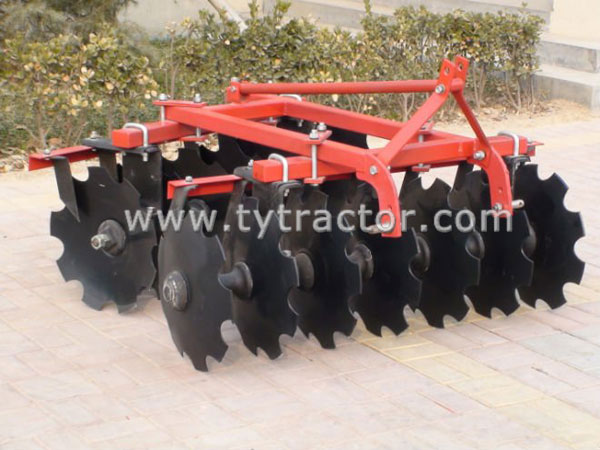

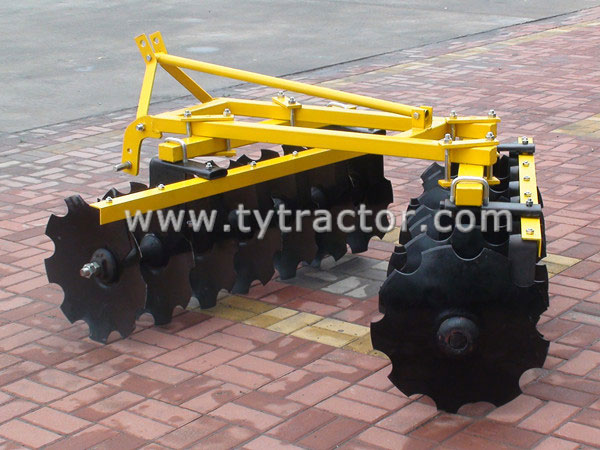

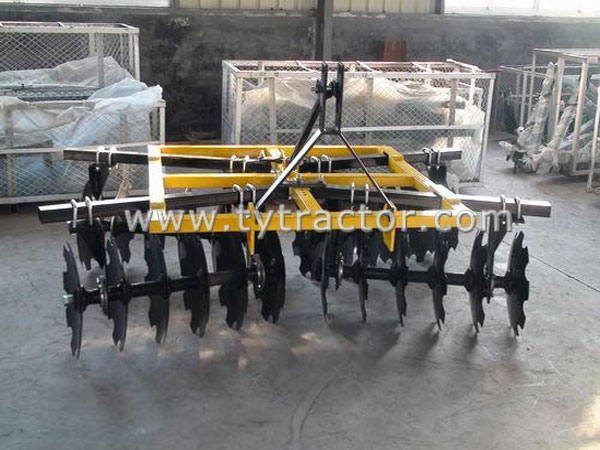

1BQX Light-duty Mounted Disc Harrow, Tractor 3PT Light-duty Mounted Disc Harrow
Go back to Catalog: Disc Harrow
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
1BQX Light-duty Mounted Disc Harrow Series
1BQX Series Mounted Light Duty Disc Harrow
1BQX series light duty disc harrows are tractor-driven, suitable for pulverizing and loosening clods after ploughing. It promotes strong, healthy root development. The frame of this light type disc harrow is made of qualified steel tube. Its structure is simple but reasonable, strong and durable, convenient to operate, easy to maintain. All these features satisfy intensive and meticulous farming.
Parameter of mounted disc harrow:
1BQX Series Mounted Light Duty Disc Harrow
1BQX series light duty disc harrows are tractor-driven, suitable for pulverizing and loosening clods after ploughing. It promotes strong, healthy root development. The frame of this light type disc harrow is made of qualified steel tube. Its structure is simple but reasonable, strong and durable, convenient to operate, easy to maintain. All these features satisfy intensive and meticulous farming.
Parameter of mounted disc harrow:
|
Model
|
1BQX-1.1
|
1BQX-1.3
|
1BQX-1.5
|
1BQX-1.7
|
1BQX-1.9
|
1BQX-2.3
|
||||
|
Overall size (mm)
|
1590*1230
*830 |
1590*1440
*830 |
1900*1600
*1120 |
1900*1820
*1120 |
2300*2000
*1120 |
2650*2450
*1280 |
||||
|
Weight (Kg)
|
200
|
220
|
240
|
260
|
300
|
500
|
||||
|
Working width (M)
|
1.1
|
1.3
|
1.5
|
1.7
|
1.9
|
2.3
|
||||
|
Working depth (mm)
|
80-140
|
|||||||||
|
Qty. of disc blades
|
12
|
14
|
16
|
18
|
20
|
24
|
||||
|
Dia. Of disc blades (mm)
|
460
|
|||||||||
|
Thickness of disc blades(mm)
|
3
|
|||||||||
|
Disc spacing (mm)
|
200
|
|||||||||
|
Productivity (Ha/h)
|
0.7
|
0.84
|
0.97
|
1.1
|
1.3
|
1.5
|
||||
|
Linkage
|
three-point lift
|
|||||||||
|
Power (Hp)
|
9-15
|
11-19
|
15-26
|
21-30
|
26-37
|
≥41
|
||||
