1LY Disc Plough, Tractor 3 Point Disc Plough
Go back to Catalog: Disc Plough
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

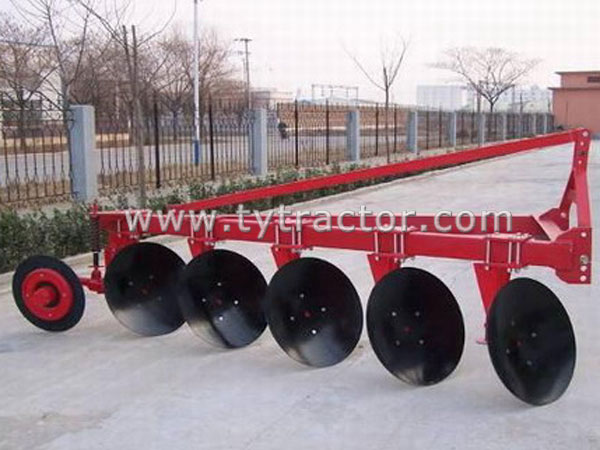

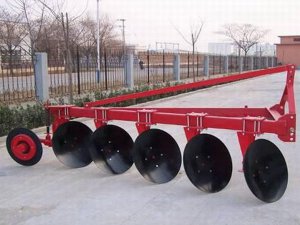

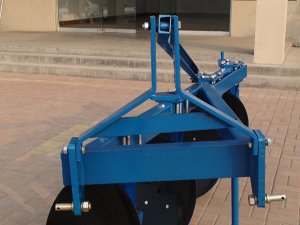

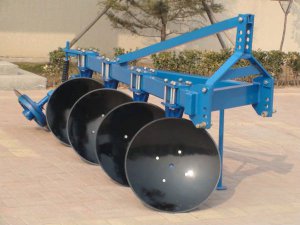

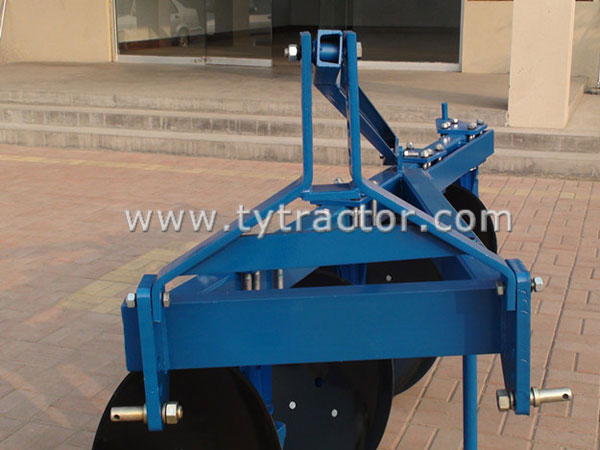

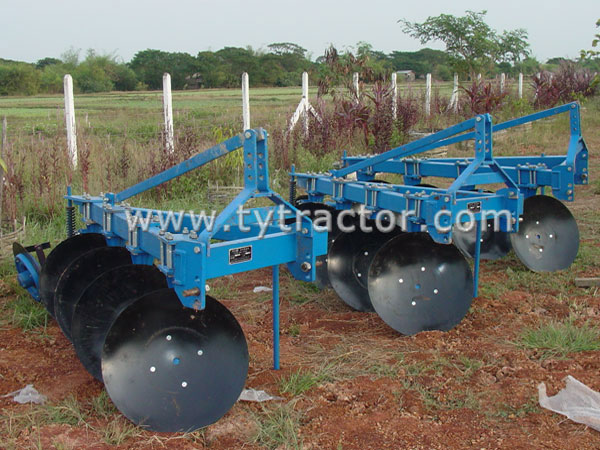

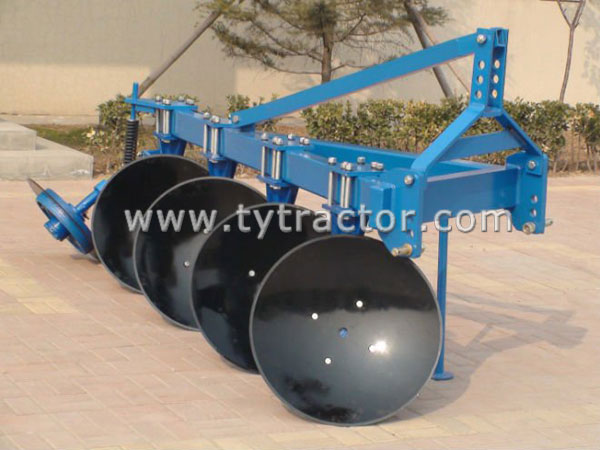

1LY Disc Plough Series
The disc plow is used for tillage on dry cultivated or fallow land, especially on high yield’s manure and virgin land. Good passability and penetration, complete inversion and coverage. Small draft resistance. easy operation and adjustment All these satisfy the agricultural requirements of fine cultivation.
The disc plow is used for tillage on dry cultivated or fallow land, especially on high yield’s manure and virgin land. Good passability and penetration, complete inversion and coverage. Small draft resistance. easy operation and adjustment All these satisfy the agricultural requirements of fine cultivation.
|
Model
|
unit
|
1LYQ-220
|
1LYQ-315
|
1LYQ-320
|
1LY-325
|
1LY-330
|
1LY-425
|
1LY-525
|
1LY-625
|
|
Working width
|
m
|
0.4
|
0.45
|
0.6
|
0.75
|
0.90
|
1.0
|
1.25
|
1.5
|
|
Working depth
|
mm
|
200
|
180
|
200
|
250
|
300
|
250
|
250
|
250
|
|
Diameter of disc
|
mm
|
510
|
460
|
510
|
660
|
710
|
660
|
660
|
660
|
|
Q’ty of disc
|
|
2
|
3
|
3
|
3
|
3
|
4
|
5
|
6
|
|
Total Weight
|
kg
|
200
|
210
|
220
|
450
|
510
|
510
|
600
|
650
|
|
Matched power
|
hp
|
≥18
|
≥25
|
25~40
|
≥50
|
70
|
80~100
|
100~120
|
120~160
|
|
Linkage
|
|
Standard three-point mounted
|
|||||||
