1LYQ Rotary Driven Disc Plough, Tractor Driven disc Plow for Paddy Field
Go back to Catalog: Disc Plough

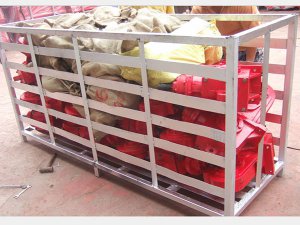

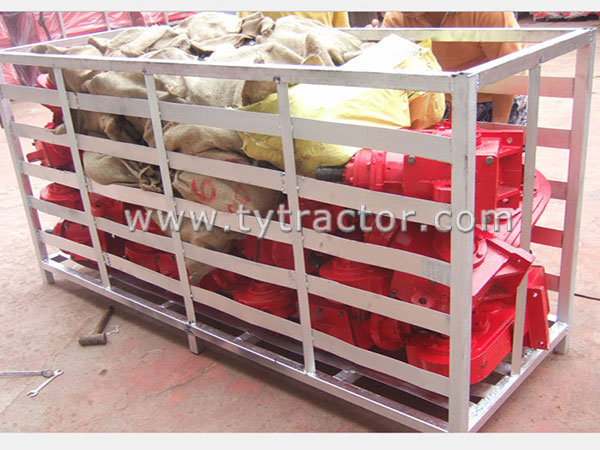

Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight
1LYQ Rotary Driven Disc Plough Series

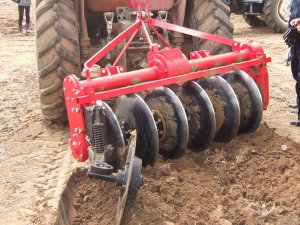

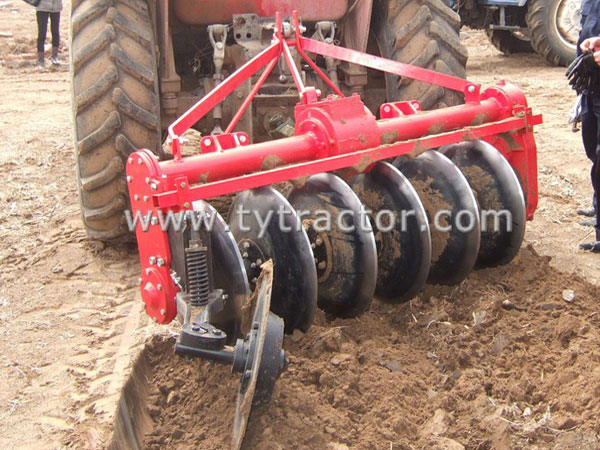

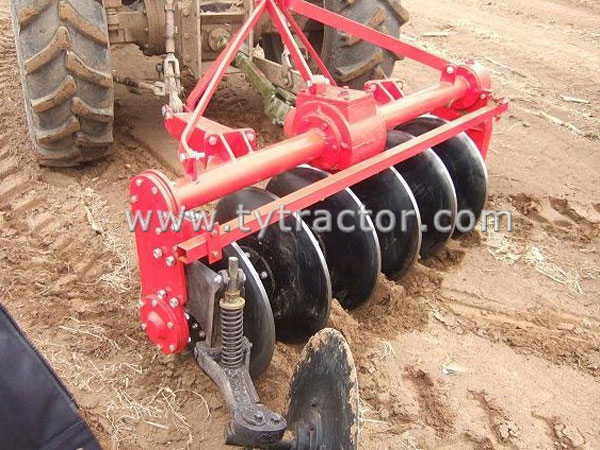

1LYQ driven disc plow is mounted with tractor by the rear three-point suspension device and drives the plough discs to rotate in the way of delivering power by tractor's rear PTO to the disc plough's gear box.this machine is mainly suitable for cultivation on paddy field. With the advantages of non-tangling weeds,high quality and effciency.
| Model | Unit | 1LYQ-422 | 1LYQ -522 | 1LYQ-622 | 1LYQ -722 | 1LYQ-822 |
| Overall dimension | mm | 965*1365*1050 | 1075*1585*1050 | 1210*1805*1050 | 1325*2025*1050 | 1440*2245*1050 |
| Working width | mm | 880 | 1100 | 1320 | 1540 | 1760 |
| Matched power | hp | 18~22 | 25~30 | 40~50 | 50~60 | 60~70 |
| Working depth | mm | 200~240 | ||||
| Rotating speed of input shaft | r/min | 540~720 | ||||
| Rotating speed of cutter shaft | r/min | 90~120 | ||||
