1LYX Pipe Disc Plough, Tractor 3 Point Pipe Disc Plow
Go back to Catalog: Disc Plough
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

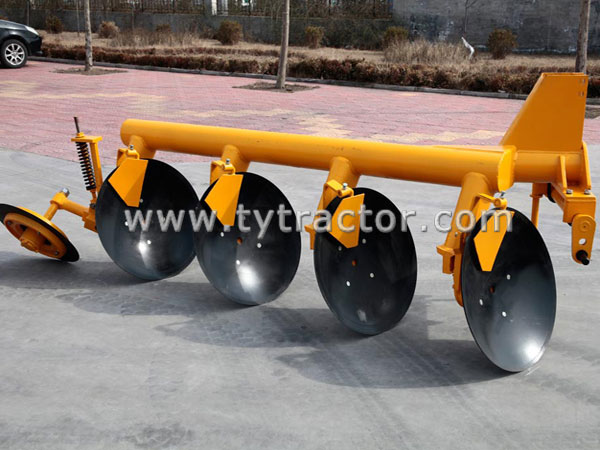

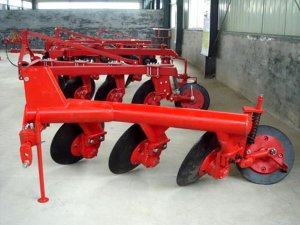

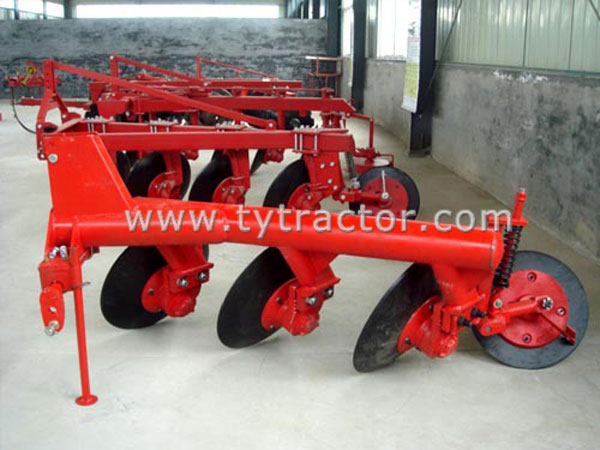

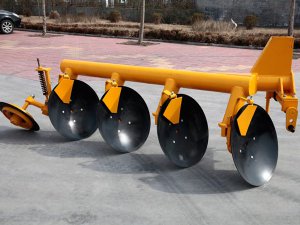

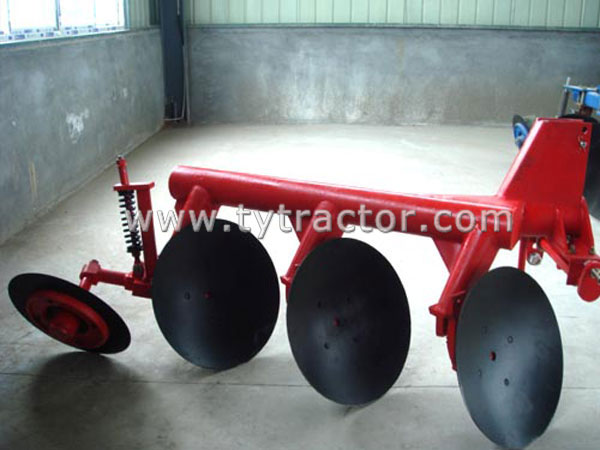

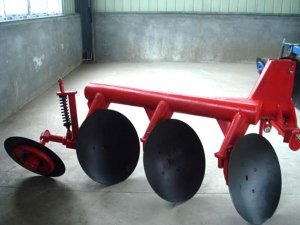

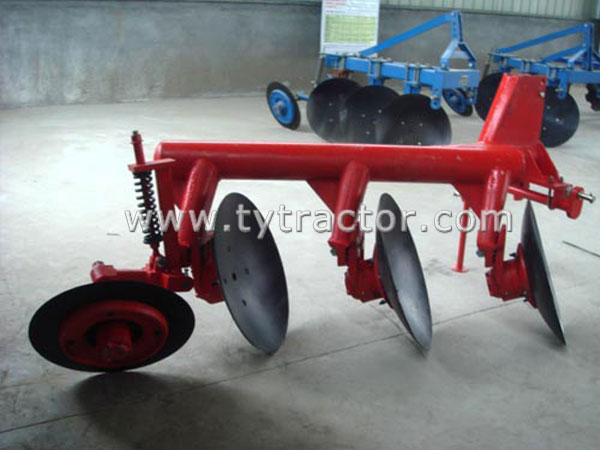

1LYX Pipe Disc Plough Series
Technique parameter: • High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade
• Frame Type Tubular Seamless Steel Pipe.
• In conformity with the soil conditions it is being produced with 2-3-4-5 disc (Bottom) version with an option for extra kit for converting it to extra disc plough.
1LYX series of disc plough used for deep ploughing in root-infested, sticky, stony, and hard soils. Mixes remains of crops and weeds throughout the depth of ploughing , hence it is ideal for rain-fed areas for checking soil erosion by water and wind. Spring loaded floating rear furrow wheel control the side draft to ensure straight work and ease of handling by smaller tractor. Other features include Taper Roller Bearing in disc hubs, Disc angle adjustable to vary the penetration with varying soil conditions, Cat I and II linkage and the Disc Scrapers are also adjustable to ensure that the Discs remain clean in all conditions.
• Frame Type Tubular Seamless Steel Pipe.
• In conformity with the soil conditions it is being produced with 2-3-4-5 disc (Bottom) version with an option for extra kit for converting it to extra disc plough.
|
1LYX-230 | 1LYX-330 | 1LYX-430 | 1LYX-530 |
Tractor power(HP) | 40-50 | 55-80 | 90-100 | 120 |
Frame | Frame Type Tubular Seamless Steel Pipe | |||
Working width | 600mm | 900mm | 1200mm | 1500mm |
Discs | 660*6mm(26’’) | 660*6mm(26’’) | 660*6mm(26’’) | 660*6mm(26’’) |
Bearing hubs | 2 | 3 | 4 | 5 |
Working depth | 200-300mm | 200-300mm | 200-300mm | 200-300mm |
Weight(kg) | 300 | 430 | 480 | 550 |
Linkage | Standard three point mounted |
