1LY SX 325 Hydraulic Reversible Disc Plough, Tractor Two Way Hydraulic Reversible Disc Plow
Go back to Catalog: Disc Plough
Package: Pallet Packing or as customer requier
Minimum Order: 1 SET
Delivery Time: 15 Days - 30Days
Export Markets: North America, South America, Eastern Europe,
Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
By wheel: 2WD/4WD
Color : Green, Red, Blue, on request
Payment Terms: T/T, L/C At Sight

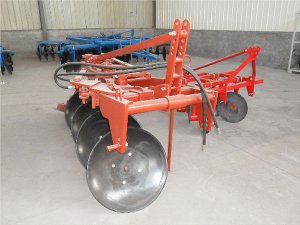

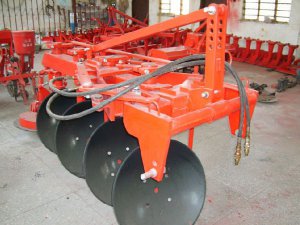

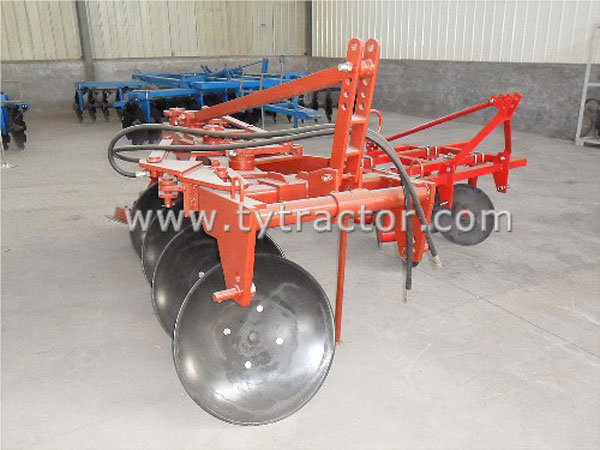

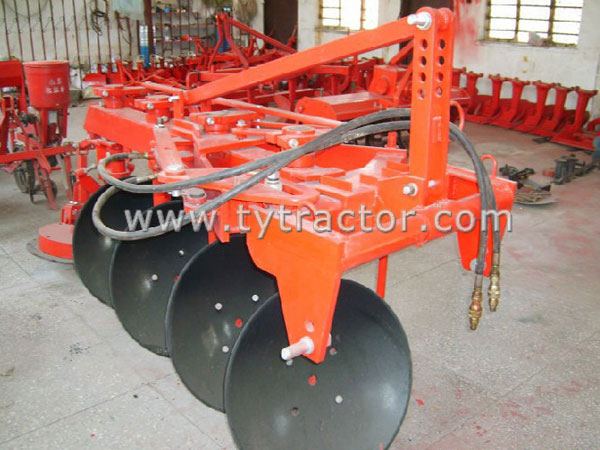

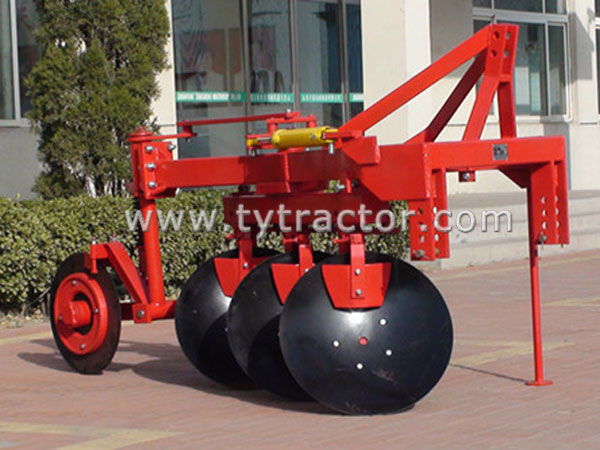

1LY SX 325 Hydraulic Reversible Disc Plough Series
Hydraulic reversible two-way disc plough products are mainly used for tillage on dry cultivated or fallow land. They not only have the function of ordinary disc plough, but also have the characteristics of short idle distance of travel on the edge of fields, high productivity, low oil consumption etc. They are also suitable for working on terraced fields and small piece of farming land.
Technique parameter:

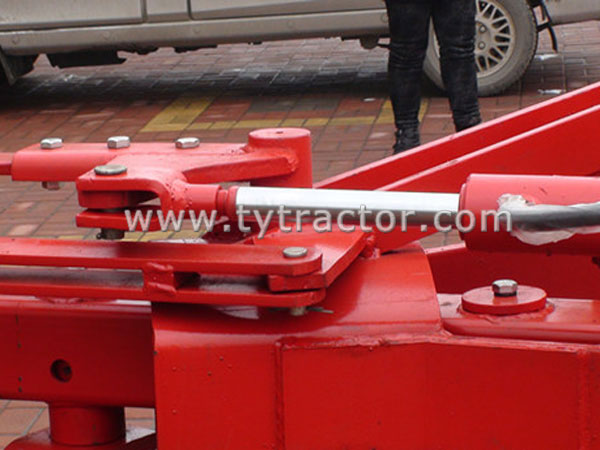

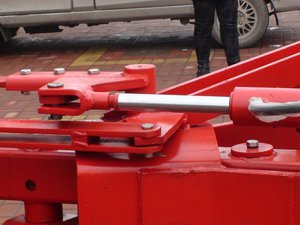

• Two-way disc plough Hydraulic system is automatically and the operation is smooth without any troubles.
• When tillage,the two-way designing could reduce idling from both sides of the field.
Thanks for your attention on our products, hope that they will be helpful for you.
Technique parameter:
• Two-way disc plough Hydraulic system is automatically and the operation is smooth without any troubles.
• When tillage,the two-way designing could reduce idling from both sides of the field.
| Model | unit | 1LY(SX)-325 | 1LY(SX)-425 | 1LY(SX)-525 | 1LY(SX)-625 |
| Working width | m | 0.75 | 1.0 | 1.25 | 1.5 |
| Working depth | cm | 25~30cm | 25~30cm | 25~30cm | 25~30cm |
| Q’ty of disc | 3 | 4 | 5 | 6 | |
| Diameter of disc | mm | 660 | 660 | 660 | 660 |
| Overall weight | kg | 620 | 700 | 830 | 950 |
| Matched power | hp | 50-80 | 80-100 | 100-120 | 120-150 |
| Linkage | Standard three point mounted | ||||
